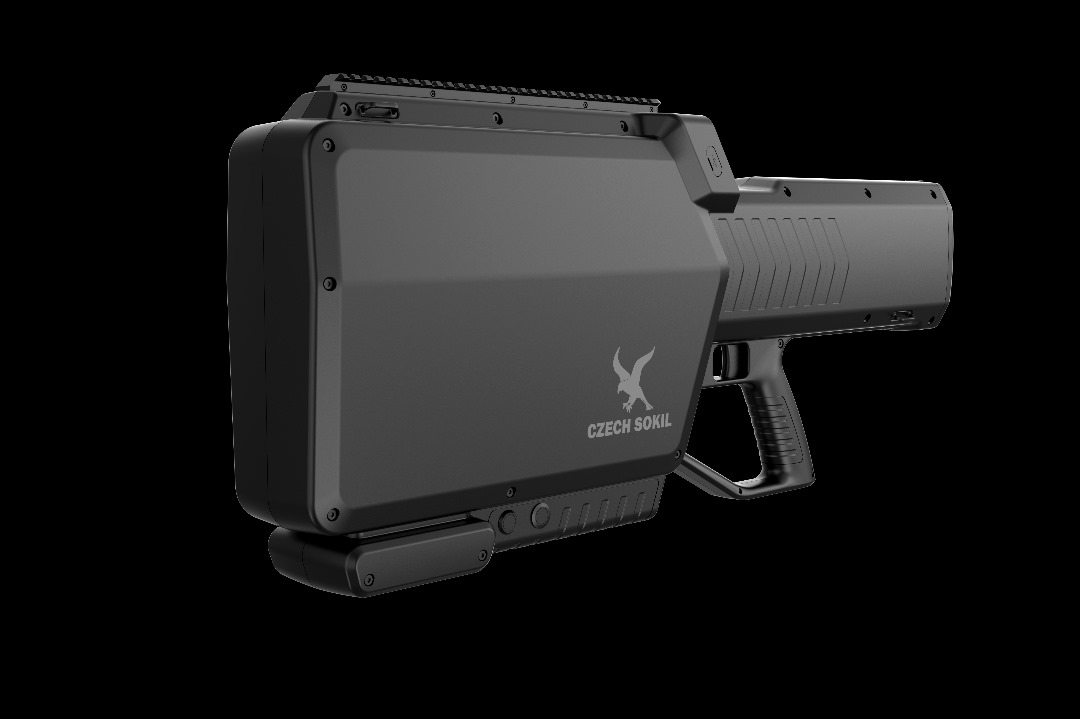

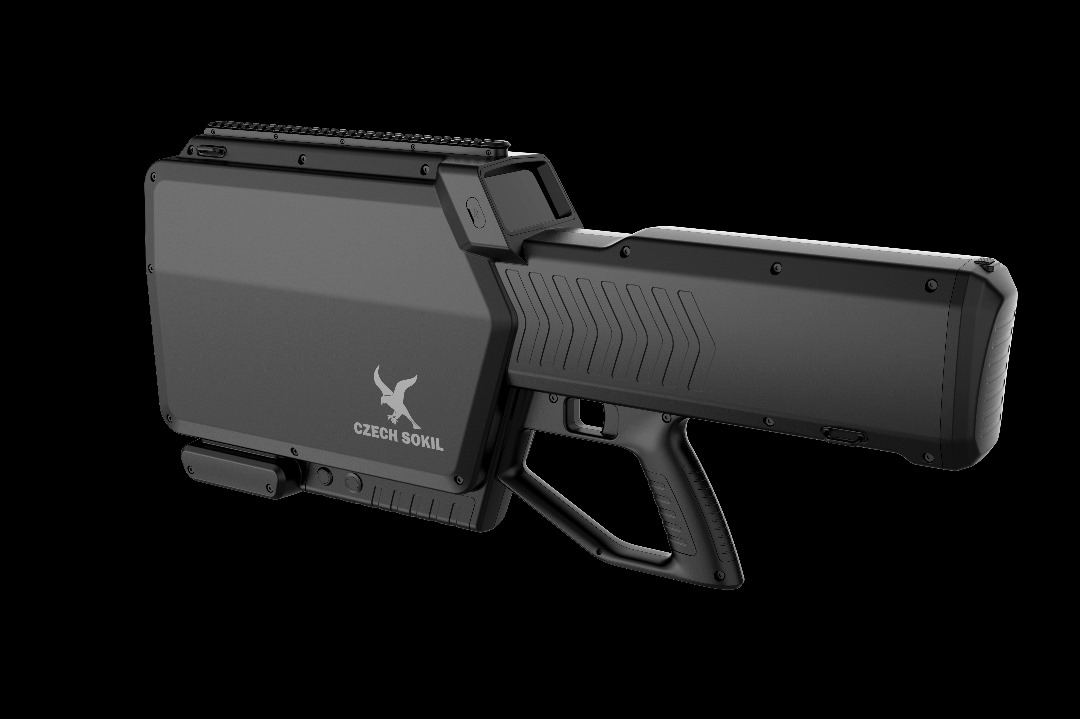

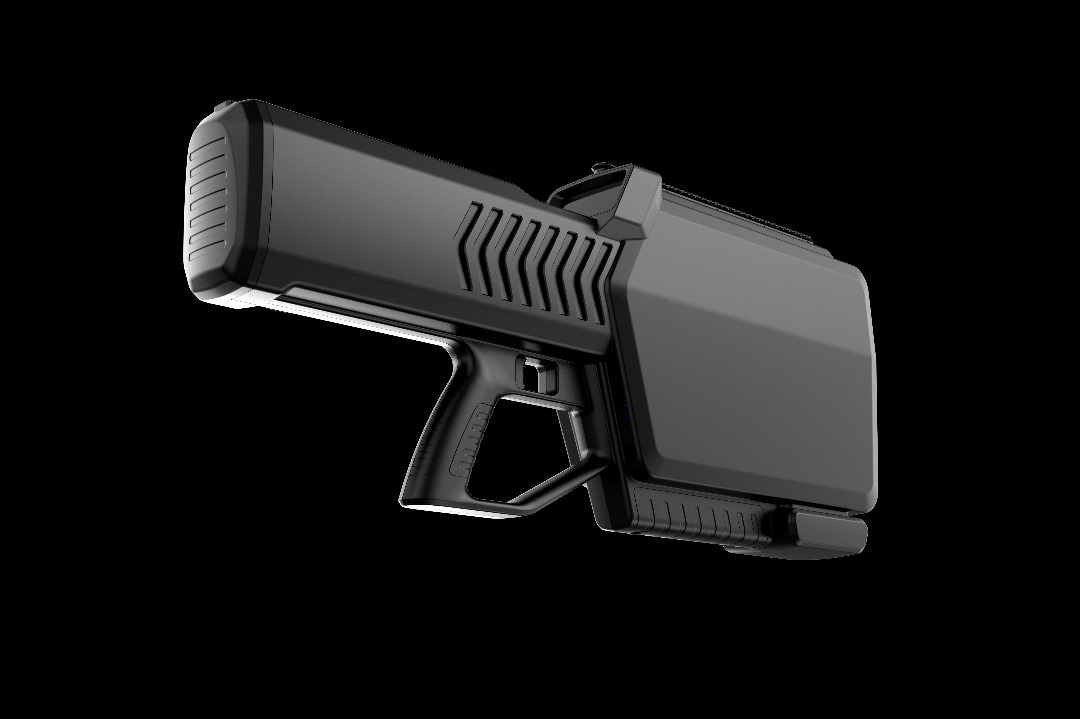

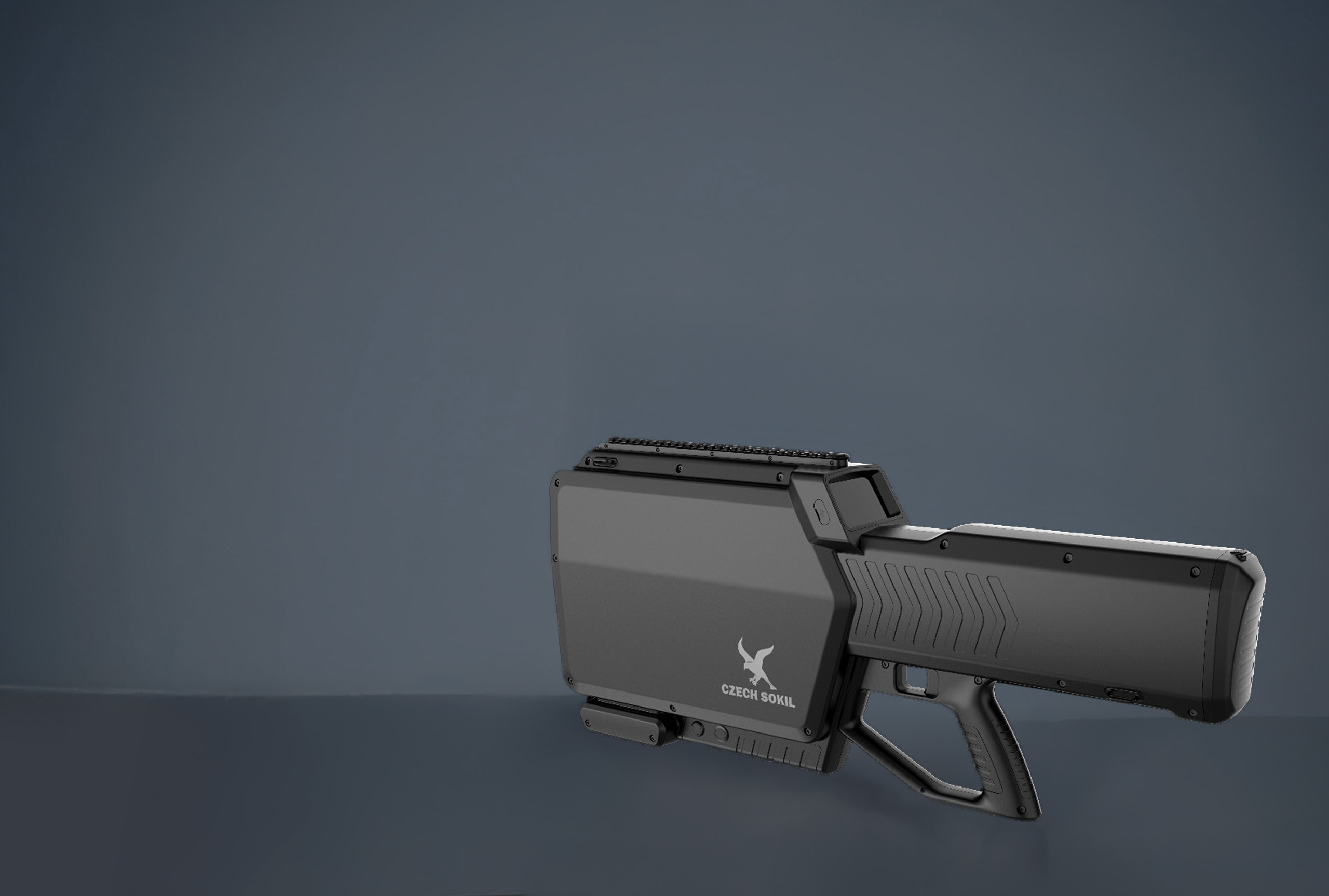

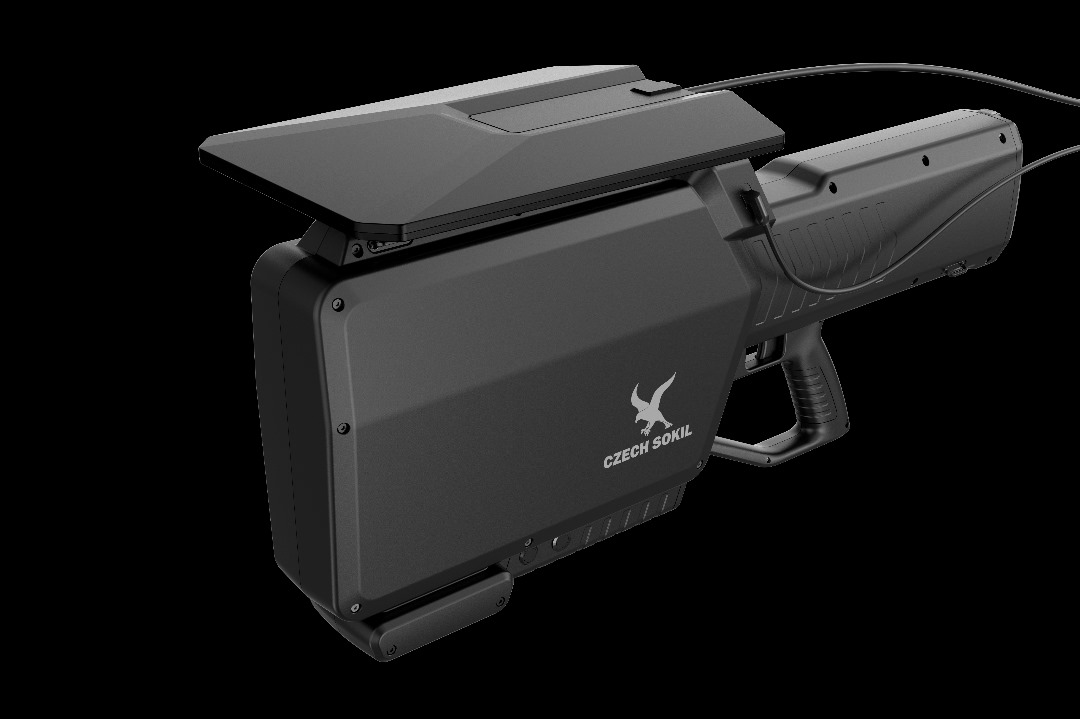

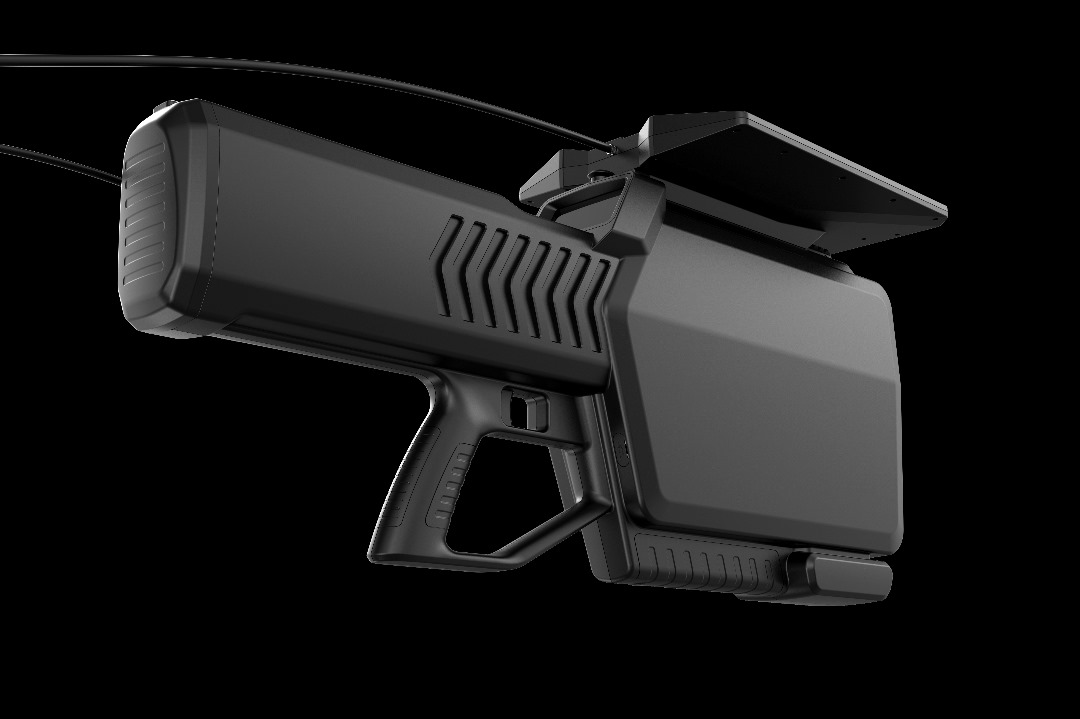

Anti-Drone Rifle with Scanner Czech Sokil SHH100

SKU: CS-SHH100-001 Category:

The Czech Sokil SHH100 anti-drone rifle features an integrated scanner, frequency-range extender, and built-in detection and jamming capabilities for UAVs such as DJI and AUTEL. Designed for rapid deployment, the SHH100 combines detection and suppression in a single portable unit to neutralize hostile drones effectively.

Complete set
    • Czech Sokil SHH100 anti-drone rifle with scanner × 1

    • Backpack with extension module for SHH100 × 1

    • External horizontally-polarized antenna for use with SHH100 extender × 1

    • Batteries × 4

    • Dual-battery charging base × 2

    • Power adapter (including DC cable) × 2

    • Power cable (AC mains cable) × 2

    • USB Type-C cable × 2

    • Shoulder strap × 1

    • Transport case for the SHH100 anti-drone rifle × 1

    • Transport case for the extension module × 1

    • External FPV video interceptor screen with two 5.8 GHz antennas × 1

    • 1.3 GHz receiver with antenna for the external FPV interceptor screen × 1

    • Power battery for the receiver and external FPV interceptor screen × 1

Specifications

Screen Image Capture & FPV Intelligence

Using analog FPV video signals allows the system to capture reconnaissance imagery and verify jamming effectiveness — creating a closed loop of detection and suppression.

Detection Range

Omnidirectional, full-band detection achieves over 3 km range in open environments (with or without interference), enabling long-range identification of commercial UAVs.

Jamming Band & Method

The system uses digital base-signal generation technology, which lowers the required signal-to-noise ratio and disrupts remote-control links through an optimally configured interference waveform.

Direction Finding Capability

The integrated direction finder (bearing) can determine the azimuth of commercial drones with an accuracy error of no more than 10°.

Fault Management

After self-diagnostics, a fault icon appears on the SHH100 screen. The user can review the system log and send fault data to support for troubleshooting and resolution.

Key Functions

Detection & Alert
Detects FPV video links and remote-control channels of commercial drones. Detection range up to 2 km, with alert time up to 4 seconds. An integrated, regularly updated UAV database contains most commercial drone models.
Detection is performed by receiving radio signals within the Czech Sokil SHH100 coverage area. Detected UAV data are displayed on the SHH100 screen and an alarm notification is sent to the operator.

Intelligent Jamming
Based on the detected UAV frequency bands, jamming strategies are automatically configured. The system can generate jamming and interference signals simultaneously across multiple frequency bands to neutralize the target.

Positioning & Aiming
For positioning and aiming, the SHH100 includes a built-in GPS module, electronic compass and gyroscope. These sensors determine the unit’s orientation relative to magnetic north and allow the operator to align the SHH100 antennas toward the target.

Firmware & Software Updates

SHH100 supports a wired connection to a PC for firmware/software updates using the designated management software.

Log Reading & Diagnostics
The device supports wired PC connection for reading system logs, including operation logs and diagnostic/fault reports.

Weight: 6.6 kg

The device supports the use of a shoulder strap, allowing operators to carry it comfortably during activities such as patrol missions.

Screen Image Capture & FPV Intelligence

Using analog FPV video signals allows the system to capture reconnaissance imagery and verify jamming effectiveness — creating a closed loop of detection and suppression.

Detection Range

Omnidirectional, full-band detection achieves over 3 km range in open environments (with or without interference), enabling long-range identification of commercial UAVs.

Jamming Band & Method

The system uses digital base-signal generation technology, which lowers the required signal-to-noise ratio and disrupts remote-control links through an optimally configured interference waveform.

Direction Finding Capability

The integrated direction finder (bearing) can determine the azimuth of commercial drones with an accuracy error of no more than 10°.

Fault Management

After self-diagnostics, a fault icon appears on the SHH100 screen. The user can review the system log and send fault data to support for troubleshooting and resolution.

Key Functions

Detection & Alert
Detects FPV video links and remote-control channels of commercial drones. Detection range up to 2 km, with alert time up to 4 seconds. An integrated, regularly updated UAV database contains most commercial drone models.
Detection is performed by receiving radio signals within the Czech Sokil SHH100 coverage area. Detected UAV data are displayed on the SHH100 screen and an alarm notification is sent to the operator.

Intelligent Jamming
Based on the detected UAV frequency bands, jamming strategies are automatically configured. The system can generate jamming and interference signals simultaneously across multiple frequency bands to neutralize the target.

Positioning & Aiming
For positioning and aiming, the SHH100 includes a built-in GPS module, electronic compass and gyroscope. These sensors determine the unit’s orientation relative to magnetic north and allow the operator to align the SHH100 antennas toward the target.

Firmware & Software Updates
SHH100 supports a wired connection to a PC for firmware/software updates using the designated management software.

Log Reading & Diagnostics
The device supports wired PC connection for reading system logs, including operation logs and diagnostic/fault reports.

Weight: 6.6 kg

The device supports the use of a shoulder strap, allowing operators to carry it comfortably during activities such as patrol missions.

Technical specifications
Czech Sokil SHH100 Anti-Drone Rifle with Scanner

Color: Grey

Dimensions

  • Anti-drone rifle: 778 × 337 × 113 mm (L × W × H)

  • Extension antenna: 310 × 450 × 15 mm

  • Digital extension module: 210 × 160 × 270 mm

  • FPV video signal receiver module: 128.5 × 83.5 × 16.8 mm

Weight

  • Anti-drone rifle: 5.716 kg (without battery) / 6.631 kg (with battery)

  • Extension antenna: 0.780 kg

  • Digital extension module: 3.187 kg (without battery) / 4.094 kg (with battery)

  • FPV video signal receiver module: 0.200 kg

Interaction Modes

  • Physical buttons / triggers

  • Display (touchscreen)

  • Audible alarm (buzzer)

  • Vibration alarm

Power System

    • Rechargeable battery

    • Charger included

Jamming Function

  • Jamming of UAV flight control / image transmission signals

  • Jamming of GNSS signals

  • Frequency range: confidential, provided upon request

  • Jamming coverage: 30° azimuth, 14° elevation

  • Jamming power: confidential, provided upon request

  • Device power: 100 W

  • Jamming range: from 300 m

  • Battery life in jamming mode: up to 1 hour (with cooling intervals between sessions)

UAV Signal Monitoring

  • Detection of UAV signals

  • Frequency range: confidential, provided upon request

  • Detection direction: omnidirectional

  • Detection range: from 2 km

  • Battery life in detection mode: up to 8 hours

FPV Video Signal Reception

  • Frequency range: confidential, provided upon request

  • Display resolution: 800 × 480 px

  • Video signal formats: PAL, NTSC

  • Response time: < 10 ms

Display

  • Size: 3.5″

  • Resolution: 1280 × 720

  • Color system: RGB stripe

  • Touchscreen: two-point capacitive

  • Operating system: Android

Display interaction:

  • System status information

  • UAV detection alerts (model, operating frequency)

  • Radio suppression mode selection: Normal / GNSS / FPV

  • Channel bandwidth configuration within 300–1100 MHz

Physical Controls

  • Trigger: on/off control of radio jamming

  • Function key (FUNC): interaction with device functions per on-screen prompts

External Interface

  • Type-C ×1: connection to PC (software updates, log access)

Battery

  • Voltage: 21.8 V

  • Capacity: 141.76 Wh

Accessory Mounting Options

  • Sight device (mounted on top Picatinny rail)

  • Adjustable antenna mount (horizontal or angled orientation)

Environmental Conditions

Operating temperature: -20°C to +55°C

Storage temperature: -20°C to +60°C

Ingress protection: IP65
