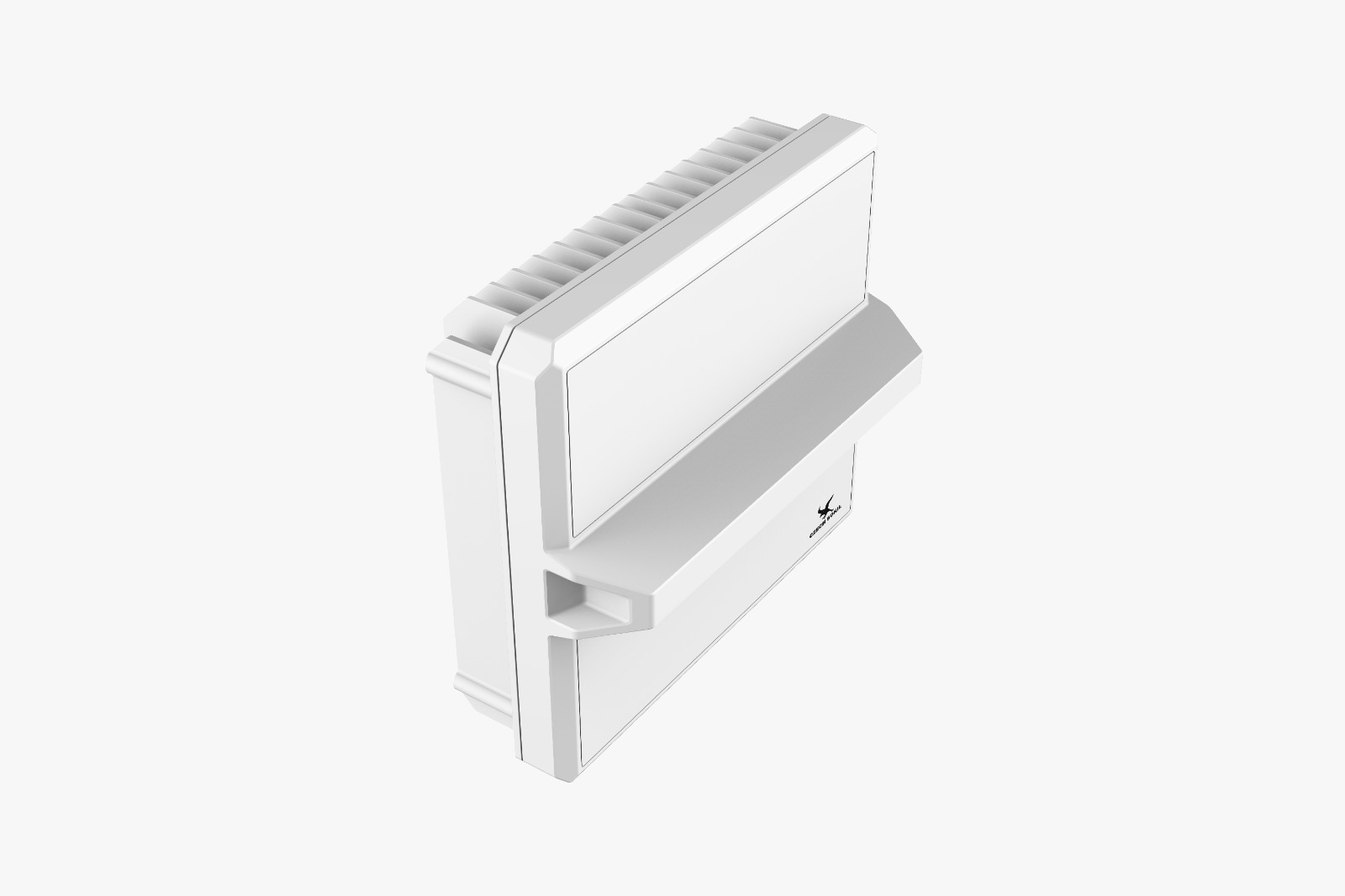

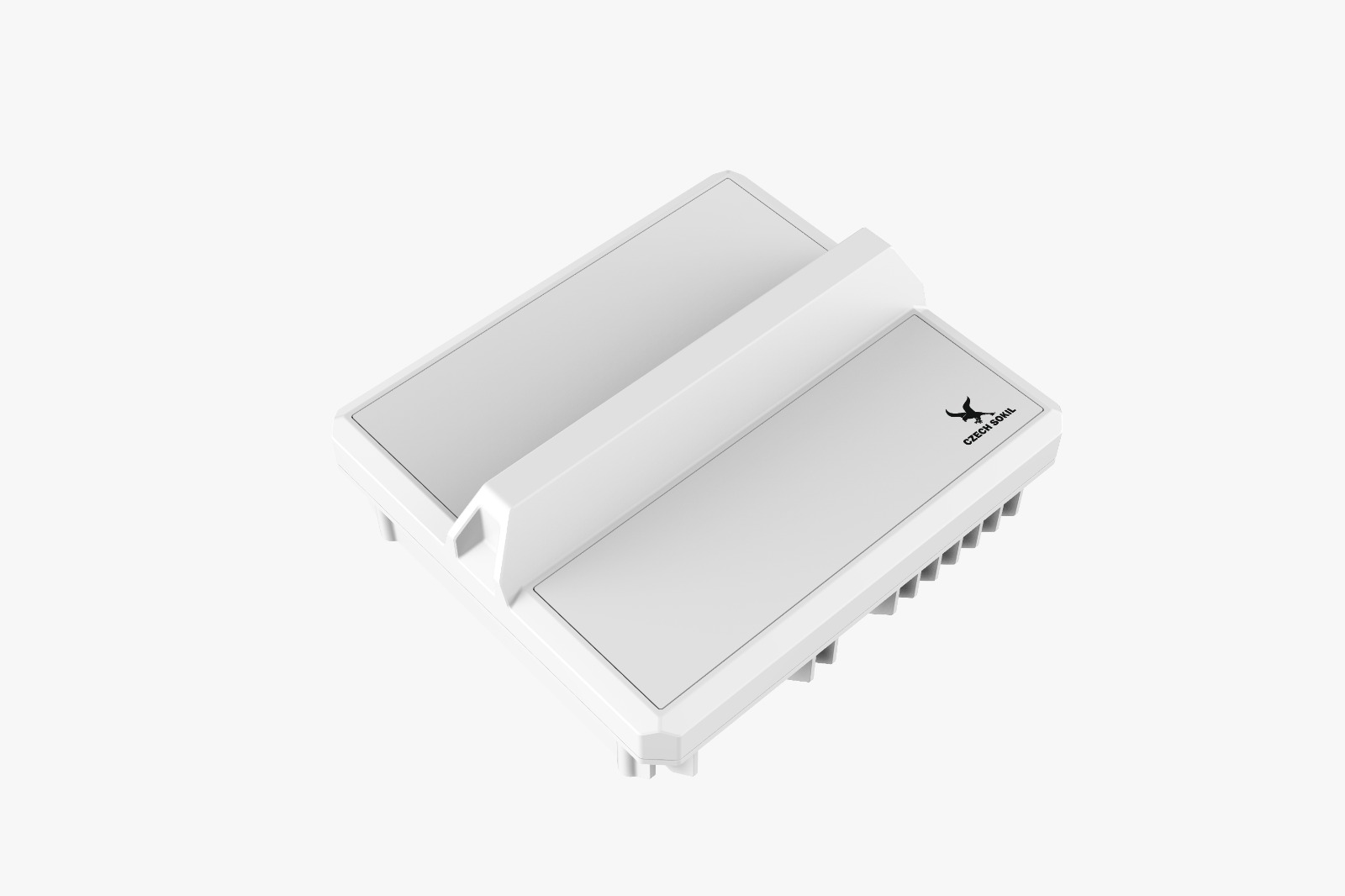

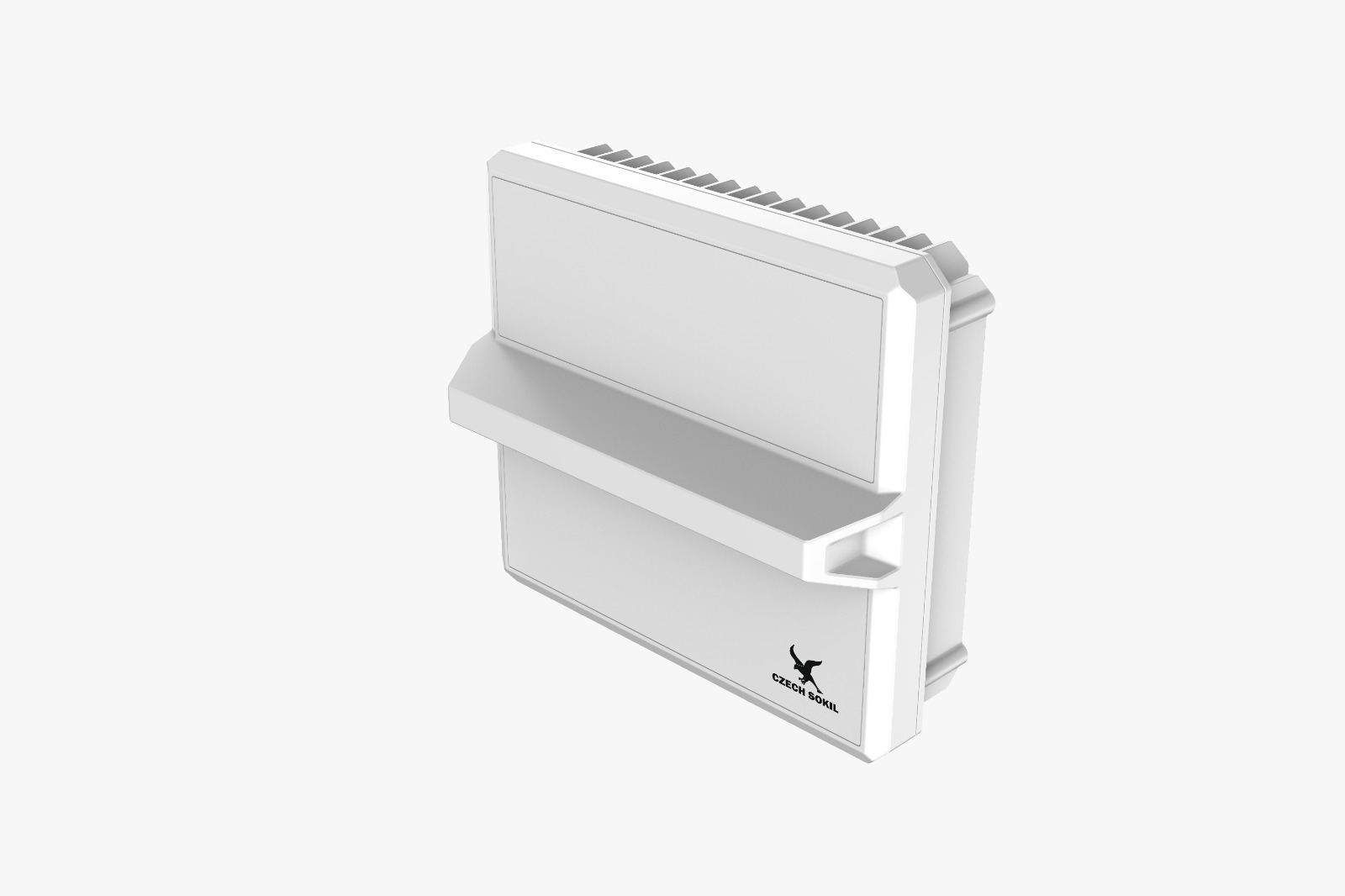

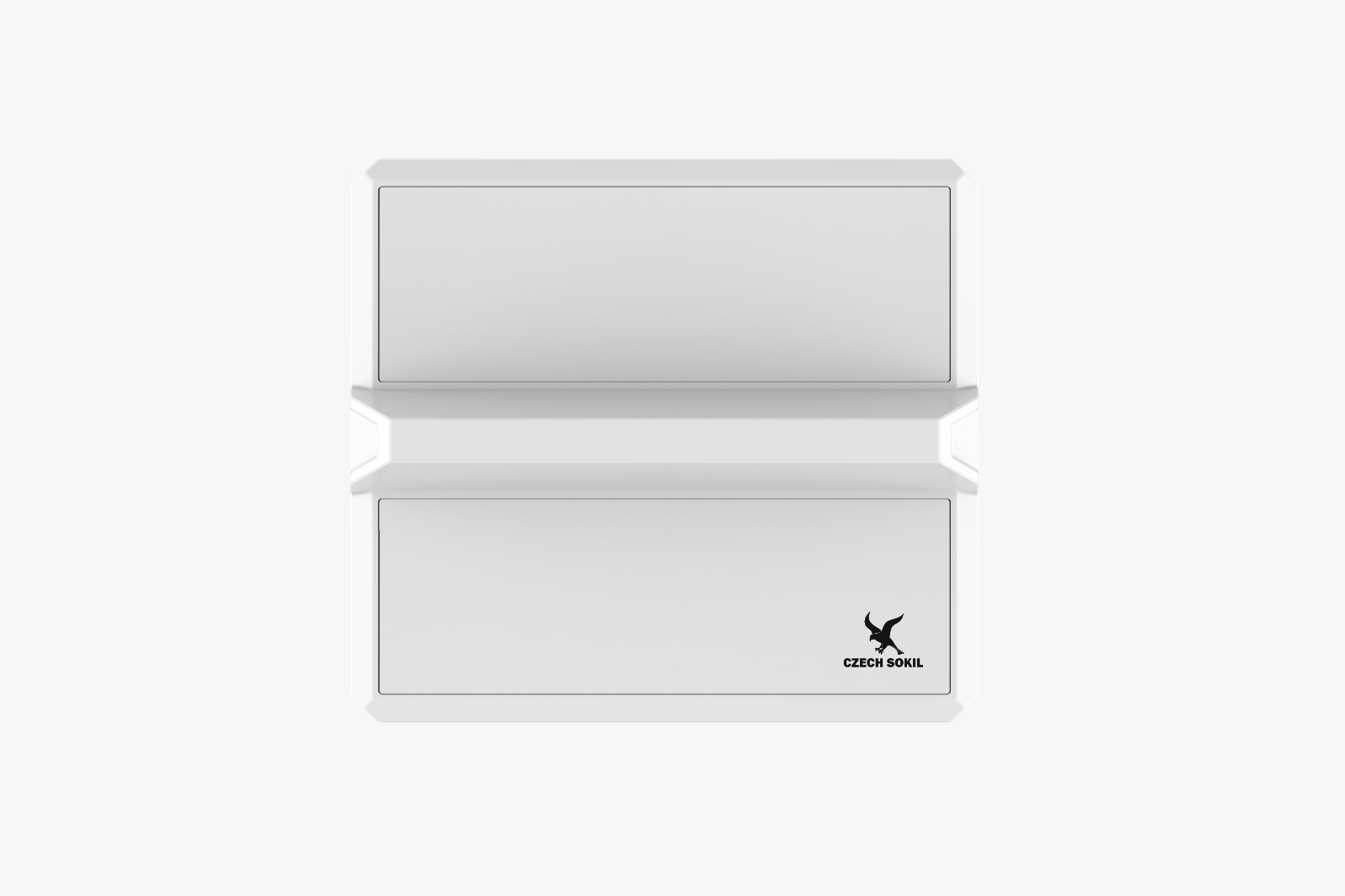

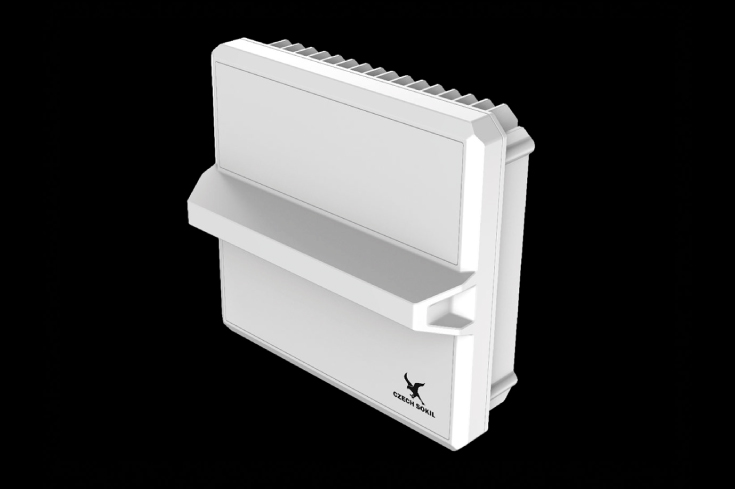

Czech Sokil RT01 Low-Altitude Detection Radar

Compact low-altitude radar for rapid deployment and reliable UAV detection. Provides 120° coverage with real-time tracking and seamless C2 integration in multi-sensor systems.

Key Features

  • Early detection and tracking of low-altitude UAVs in the close protection zone
  • Compact low-SWaP radar for rapid deployment
  • 24/7 operation in harsh weather conditions with interference filtering and IP65 protection
  • Network-enabled operation, scalable coverage in multi-sensor architectures
  • Integration into the C2 loop via Ethernet and Sapient protocol

Specifications

Radar Type: 2D AESA FMCW, K-band 24.05–24.25 GHz
Detection Range: up to 4 km
Up to 1.1 km for micro quadrotor UAVs
Field of View: 120° azimuth / 60° elevation, software configurable
Target Tracking: up to 10 targets
Target Detection: up to 200 simultaneous targets, 100 ms update cycle
Accuracy: 10 m (range), 0.6 m/s (velocity), 2° (azimuth)
Transmit Power: 7 W
Power Consumption: 130 W
Weight: 3 kg
