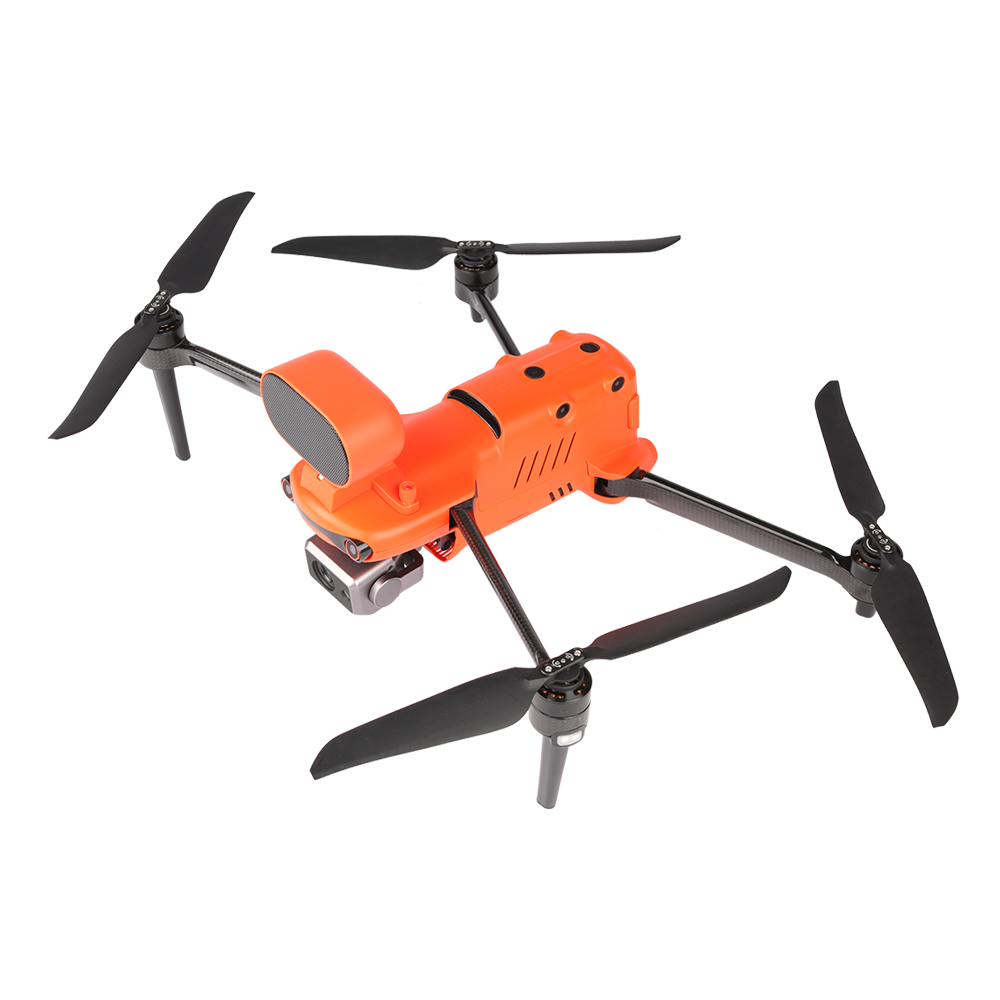

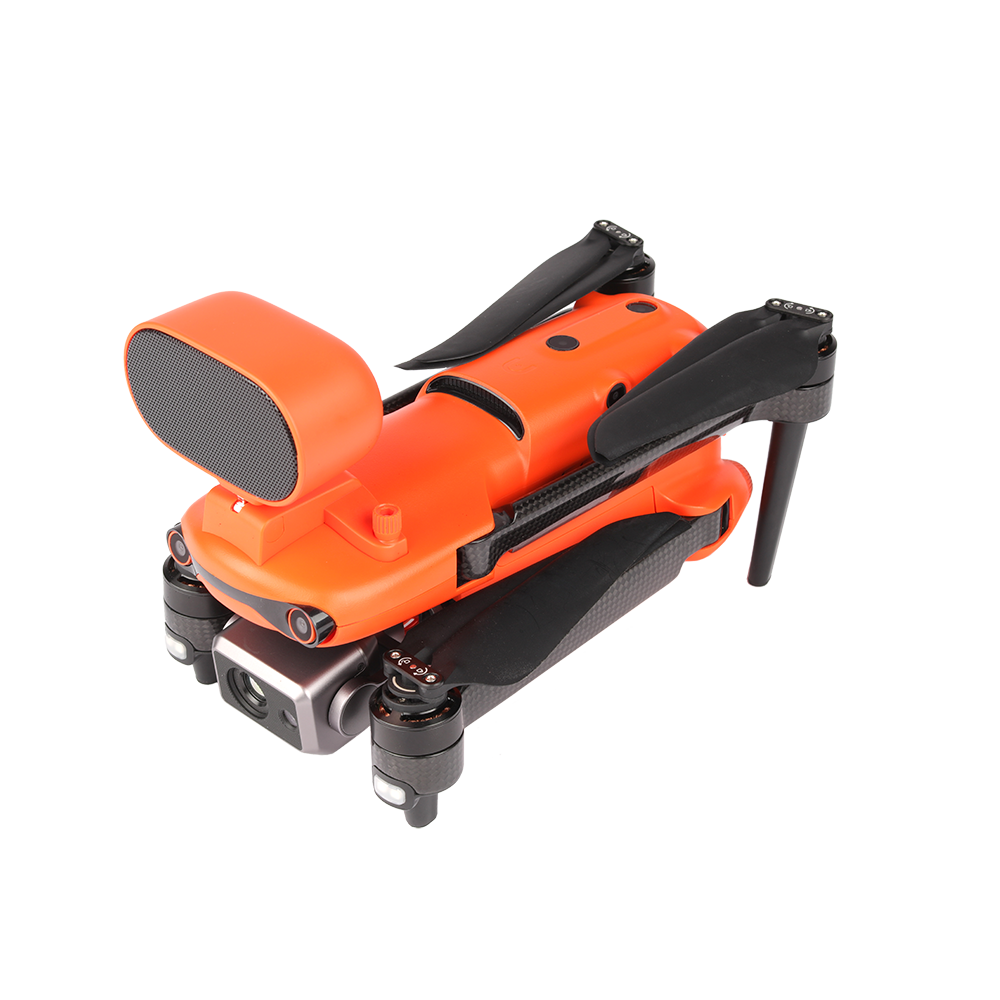

Quadcopter Autel EVO II Dual 640T Enterprise V3 Rugged Bundle
Autel EVO II Dual 640T Enterprise is a powerful drone that combines a high-quality 8K visual and thermal imaging camera in one device. With a thermal camera with a resolution of up to 640×512 and an 8K sensor, the EVO II Dual 640T V3 becomes a reliable assistant and a compact tool that provides the necessary data at night and in poor light. The Enterprise version has a strengthened hull, more powerful motors and larger propellers, which adds another 5-7 minutes of flight and provides a maximum flight time of 42 minutes.
– 15 km data transmission range
– 42 minutes flight duration
– ADS-B receiver
– 1-inch camera with an out-of-the-box CMOS sensor

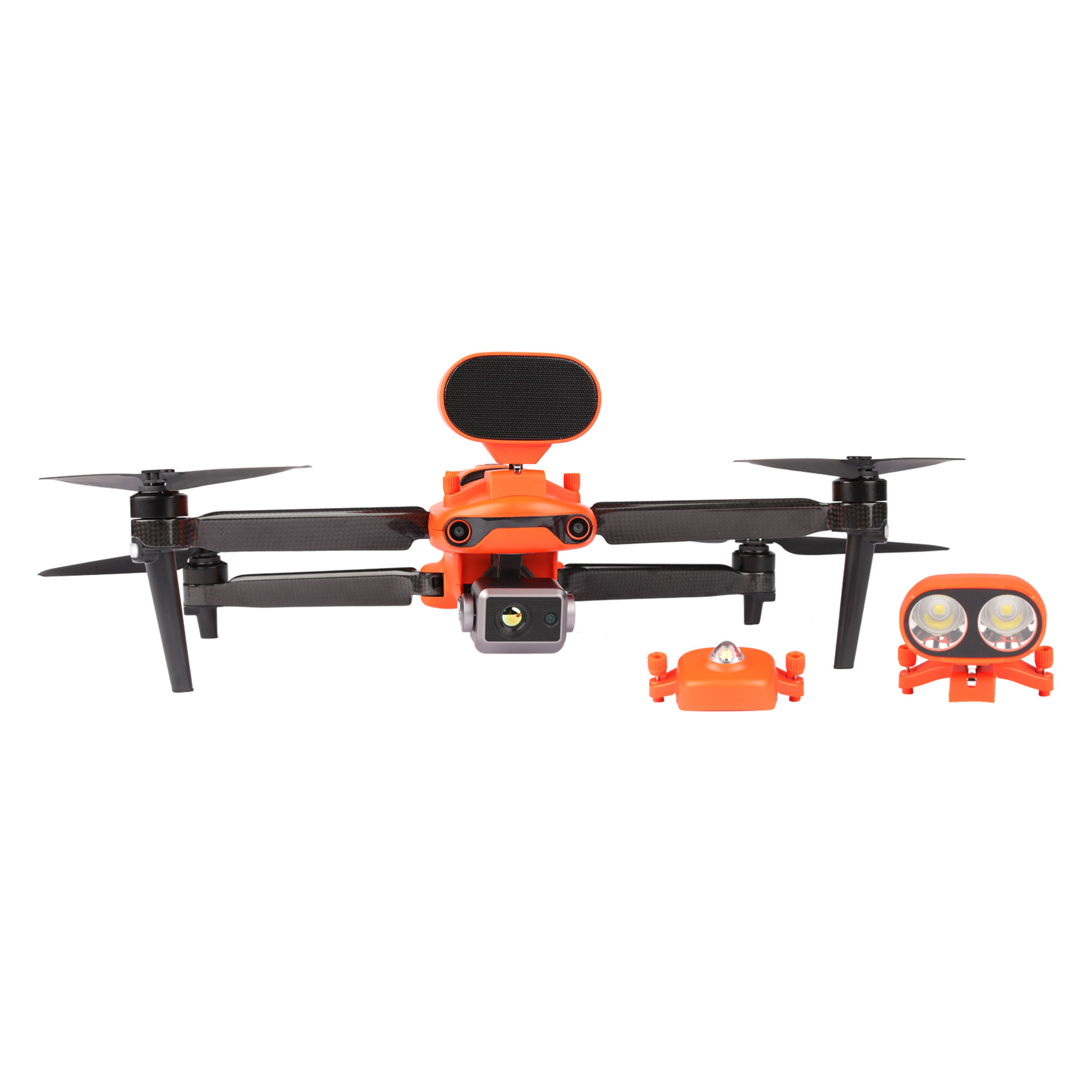

– A speaker/spotlight/strobe is included
– Dynamic object tracking
– 360° obstacle avoidance
5949,00 €
Available on backorder

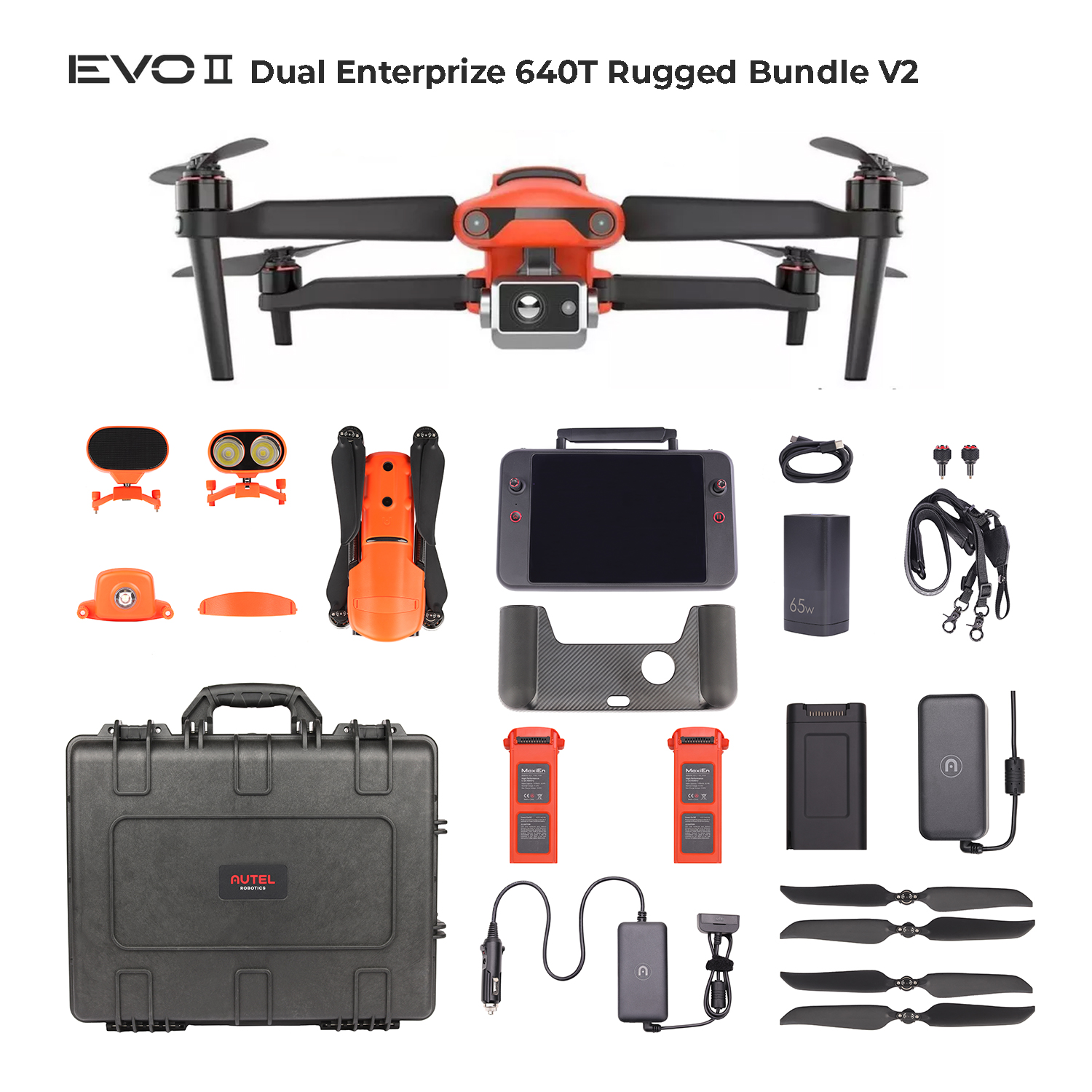

Complete set
1 x Remote control (including joysticks)
2 x Spare battery
1 x Spare pair of propellers
1 x Power cable
1 x Charger for the Control Panel
1 x Charging cable for the Control Panel
1 x Lanyard for the Control Panel
1 x Speaker
1 x Searchlight
1 x Stroboscope
1 x Interface cover
1 x Spare sticks for joysticks (pair)
1 x Carrying case
Compact. Universal. Effective.
Improved high-quality image processing system, upgraded image transmission distance of 15 km and additional modular accessories will help you in various uses, including inspection, search and rescue, situational awareness, etc.
SkyLink 2.0 transmission
360° obstacle avoidance
Moonlight Algorithm 2.0
Modular accessories
Centimeter-accurate positioning with RTK
ADS-B receiver

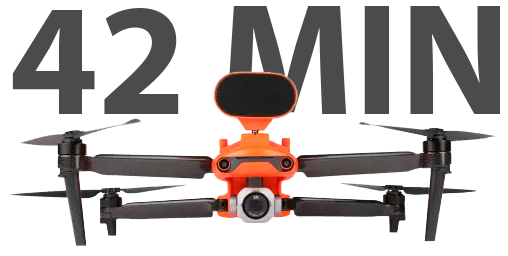

Large propellers and revised flight algorithms provide the longest flight time in its category.
Extended heat holes
Additional thermal vents for additional heat dissipation extend battery life.
Carbon reinforced frames
Additional stiffness and strength during flight.
640 x 512 thermal imaging sensor with a refresh rate of 30 Hz
Equipped with a high-resolution 640 x 512 thermal imaging camera with a 13mm focal length lens and 16x digital zoom, the EVO II Dual 640T Enterprise V3 can easily observe distant targets with incredible detail. With a new image processing algorithm, thermal details are incredibly sharp.
0.8 inch RYYB CMOS sensor
The 0.8-inch RYYB CMOS sensor and the Moonlight 2.0 algorithm remove noise and shadows from images, making detection, identification and classification easier goals Combined with a 50-megapixel camera, users can expect high-quality photos at any time of the day.
640 x 512 thermal imaging sensor with a refresh rate of 30 Hz
Equipped with a high-resolution 640 x 512 thermal imaging camera with a 13mm focal length lens and 16x digital zoom, the EVO II Dual 640T Enterprise V3 can easily observe distant targets with incredible detail. With a new image processing algorithm, thermal details are incredibly sharp.
0.8 inch RYYB CMOS sensor
The 0.8-inch RYYB CMOS sensor and the Moonlight 2.0 algorithm remove noise and shadows from images, making detection, identification and classification easier goals Combined with a 50-megapixel camera, users can expect high-quality photos at any time of the day.
Conquer the night
Moonlight Autel 2.0 algorithm provides additional noise reduction processing. In combination with the updated CMOS EVO II Enterprise V3 works successfully at night.
Scale with confidence
Payload has 3x lossless zoom and 16x digital zoom. Fly to safer distances with high-precision images.
Reconstruction of the accident
Reconstruct scenarios quickly and accurately with built-in mission planning and third-party compatibility, including Pix4D, DroneDeploy and SkyeBrowse.
Extended dynamic range with 4K HDR
Extended dynamic range with 4K HDR 4K HDR provides greater detail in highlights and shadows, delivering higher quality images in the most challenging environments.
Several temperature measurement modes
Point temperature measurement
Displays the temperature of the selected object with one tap on the screen.
Regional temperature measurement
Displays the maximum, minimum and average temperature of the selected area.
Central temperature measurement
Displays the temperature in the central part of the screen.
Temperature alarm
Alerts the user when the temperature in a certain zone reaches a set threshold.
Isotherm
Detects any objects in the specified temperature range.
Image enhancement
Allows the user to adjust image brightness, contrast, and image detail in real time.
7.9-inch HD touch screen
Maximum brightness: 2000 nits
Operating temperature from -20 °C to 40 °C
IP43 Protection class
Versatility of missions
EVO II PRO Enterprise V3 can transform from a simple processing tool
of images to a multifunctional flying platform,
Versatility of missions
EVO II PRO Enterprise V3 can transform from a simple processing tool
of images to a multifunctional flying platform,
Application areas
Technical characteristics
QUADROCOPTER AUTEL EVO II DUAL 640T ENTERPRISE V3
-
- Weight at take-off: 1110g
- Maximum take-off weight: 1999 g
- Diagonal wheelbase: 427 mm
- Size (LWH, with propellers): 245*130*111 mm (expanded) 506*620*111 mm ( collapsed)
- Maximum service altitude: 7000 m
- Maximum climbing speed: 8 m/s
- Maximum speed of descent: 4 m/s
- Maximum horizontal flight speed: 20 m/s
- Maximum tilt angle: 33°
- Maximum angular velocity: 120°/s
- Maximum flight time (without wind): 42 min
- Maximum holding time in the air (without wind):
38 min (with stroboscope)
29 min (with spotlight)
34 min (with loudspeaker)
36 min (with RTK module) - Operating temperature range: -10℃ ~ 40℃
- Maximum wind resistance: 12 m/s
- Operating frequency
2.400-2.4835 GHz
5.725-5.850 GHz (outside Japan)
- Accuracy of holding in place
When RTK is enabled and working normally:
Vertically: ±0.1 m;
Horizontally: ±0.1 m
Vertically: ±0.1 m (when visual positioning works normally);
±0.5m (when GNSS works normally)
Horizontal: ±0.3 m (when visual positioning works normally);
±1.5 m (when GNSS works normally)
Memory:
- Internal memory: 8 GB
- max. support 256 GB (requires UHS-3 rating)”
Remote control and image transfer:
- Operating frequency:
902-928MHz (FCC only)
2.400-2.4835GHz
5.725-5.850GHz (outside Japan)
5.650-5.755GHz (Japan only) - Transmission power:
FCC: ≤33dBm CE:
≤20dBm@2.4G, ≤14dBm@5.8G SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
- Maximum transmission distance (without interference, free from interference):
FCC: 15 km
CE: 8km - Display 2048×1536, 60 frames per second
- Battery 5800 mAh
Operating time ~3 hours (with maximum brightness) ~4.5 hours (with 50% brightness)
Charging time is 90 minutes - 128 GB ROM internal storage + the possibility of memory expansion using a micro-SD card
- Type of detection system: Omnidirectional detection system
- Forward:
Detection range: 0.5-18 m
Effective detection speed: <12 m/s Viewing angle: Horizontal: 60°, Vertical: 80°” - Back:
Detection range: 0.5-16 m
Effective detection speed: <12 m/s Viewing angle: Horizontal: 60°, Vertical: 80°” - Up:
Detection range: 0.5-10 m
Effective detection speed: <5 m/s Viewing angle: horizontal: 65°, vertical: 50°” - Down:
Detection range: 0.5-10 m
Effective detection speed: <5 m/s Viewing angle: horizontal: 100°, vertical: 80°” - Left and right:
Detection range: 0.5-10 m
Effective detection speed: <5 m/s Viewing angle: horizontal: 65°, vertical: 50°” - Operating environment: ”
Front, Back and Sides: Surface with clear pattern and sufficient lighting (lux > 15)
Top: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Bottom: A surface with a clear pattern and sufficient illumination (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)”
1 x Autel EVO II Pro V3 Quadcopter
1 x Remote control (including joysticks)
2 x Spare battery
1 x Spare pair of propellers
1 x Power cable
1 x Charger for the Control Panel
1 x Charging cable for the Control Panel
1 x Lanyard for the Control Panel
1 x Speaker
1 x Searchlight
1 x Stroboscope
1 x Interface Cover
1 x Spare sticks for joysticks (pair)
1 x Carrying case
