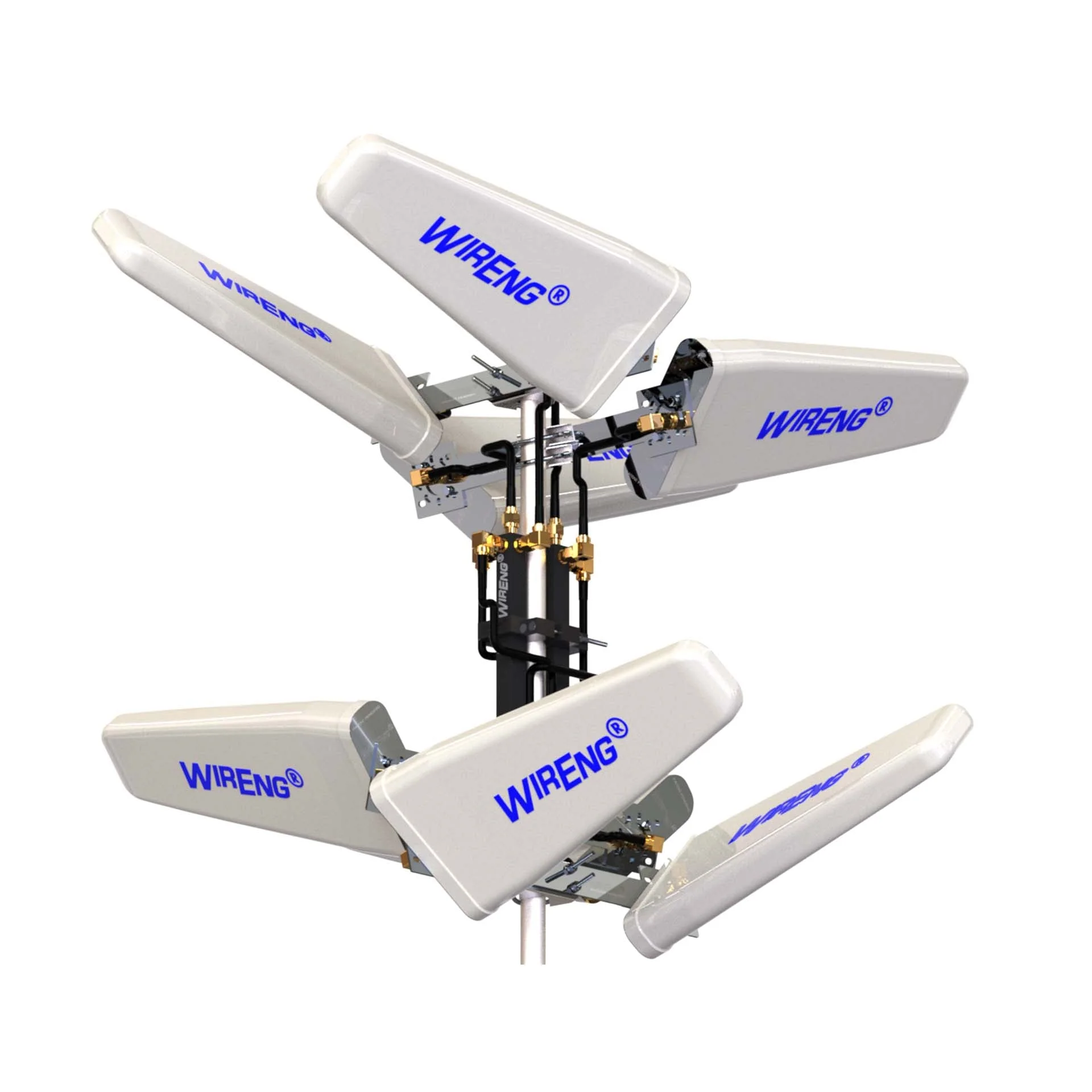

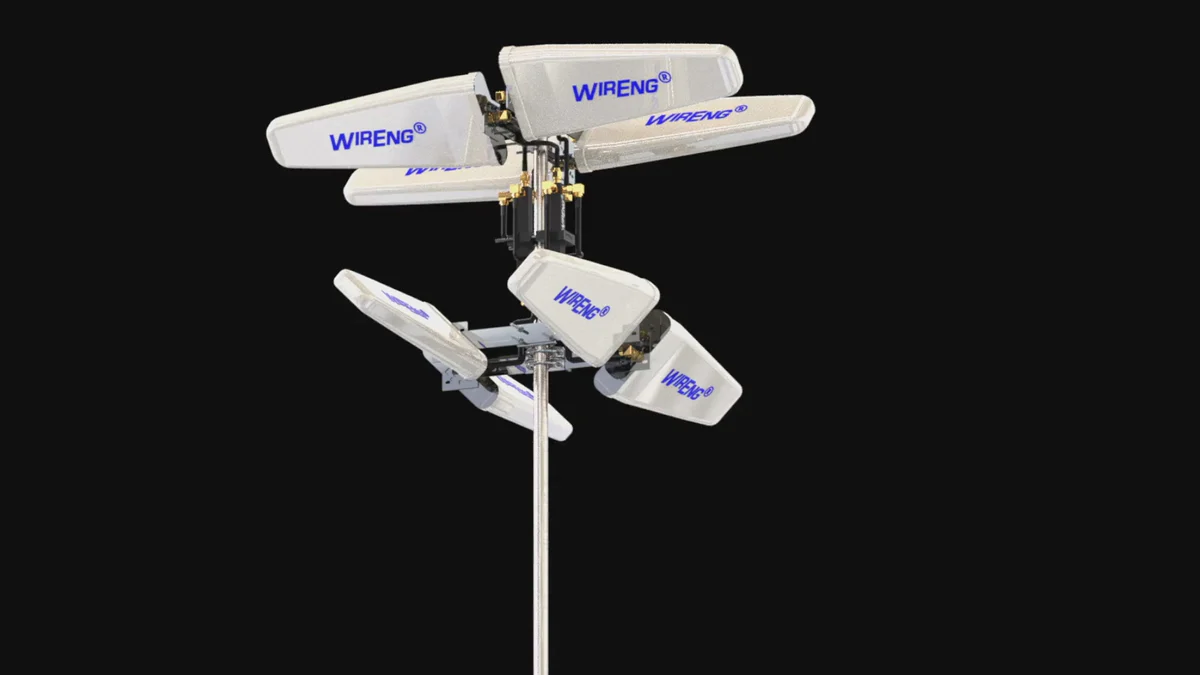

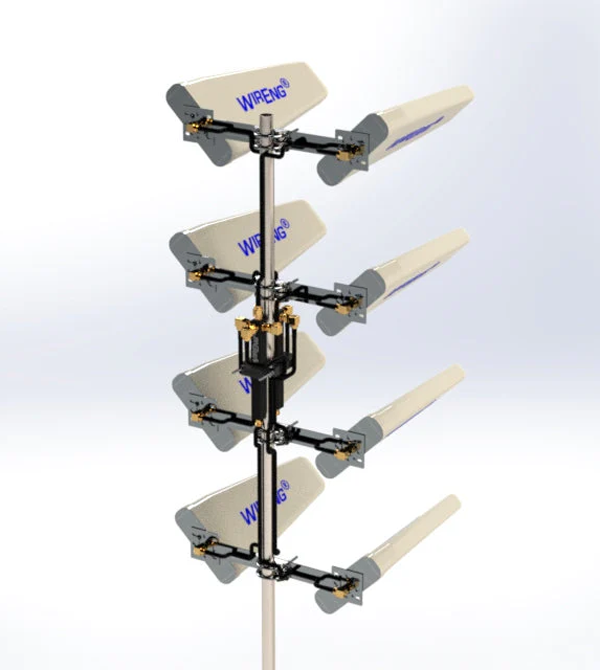

WirEng DroneAnt-Plus™ Omnidirectional Antenna for Autel Robotics EVO Max 4T/DJI Mavic
This is the best omnidirectional antenna with high gain, designed to greatly expand the capabilities of Autel EVO Max 4T Smart Controller V3 drones and DJI Mavic series drones. Also used when RF interference may cause loss of control of your Autel Robotics EVO Max 4T/DJI Mavic.
Country of manufacture – USA
5900,00 €
Available on backorder
DroneAnt-Plus™
High gain omnidirectional antenna
to expand the possibilities Autel EVO Max 4T
DroneAnt-Plus
this is a high gain omnidirectional antenna designed to greatly expand the capabilities of Autel EVO Max 4T controlled by SmartController V3;
– significantly increases the range of radio frequency communication, while maintaining the speed and quality of data transmission, especially in fully directional mode;
– ensures stable operation under the influence of most means of electronic warfare (EW) and other external interference;
– increases the power of the wireless signal, increases the transmission distance and stabilizes signal reception;
– makes it possible to increase the duration and service life of the drone battery;
– works stably in extreme conditions of use.
Main features
• DroneAnt-Plus can be configured as omnidirectional, bidirectional, or unidirectional
• Available with standard ABS fairings or industrial/military FRP fairings
• Has unparalleled functionality Ultra-Wide Extended Band to support all TX/RX modes
• Has high gain in fully directional mode on all bands < /span>drones
• Sealed and protected from moisture (also suitable for marine environments)
• Equipped with thick, high-quality ABS plastic housings with anti-UV processing (FRP for the industrial version)
• Can be used to control a drone from a hidden (ie underground) location
• Has high input power (up to 2 x 150 W continuous)
• Has an extended operating temperature range from -55° to +125° C (FRP version)
• Features 24K gold-plated N-type connectors on shrouds and antenna interfaces
• Fully supports anti-jamming frequency hopping technology
• Has ultra-low SWR from 550 MHz to 6000 MHz< /p>
• Features fully support Frequency Hopping Spread Spectrum (FHSS) modality.< /span>
• Has an IP67 rating (protected against dust, strong water jets and waves)
• Has a UL94 V-0 flammability rating
• Represented by US and international trademarks (current)< /p>
• Contains US patents and international patents (pending)

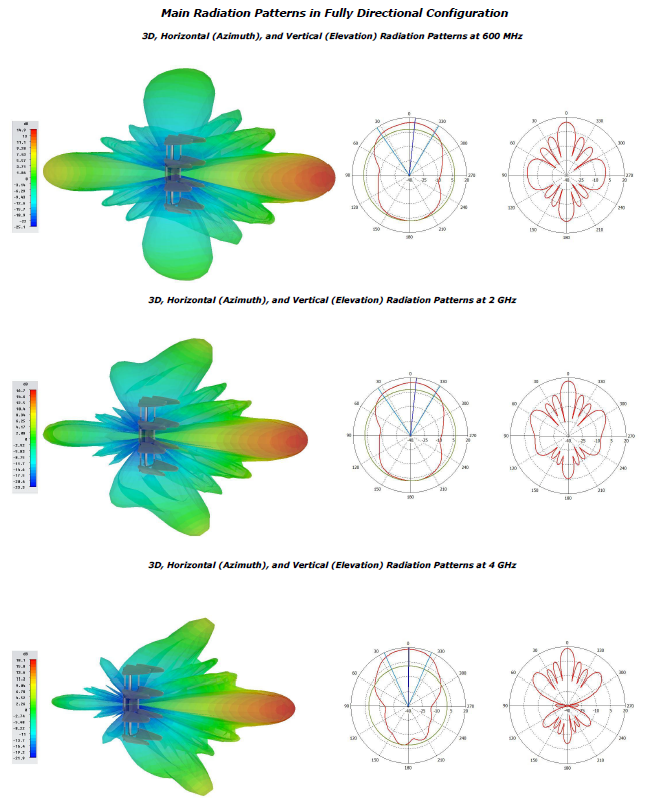

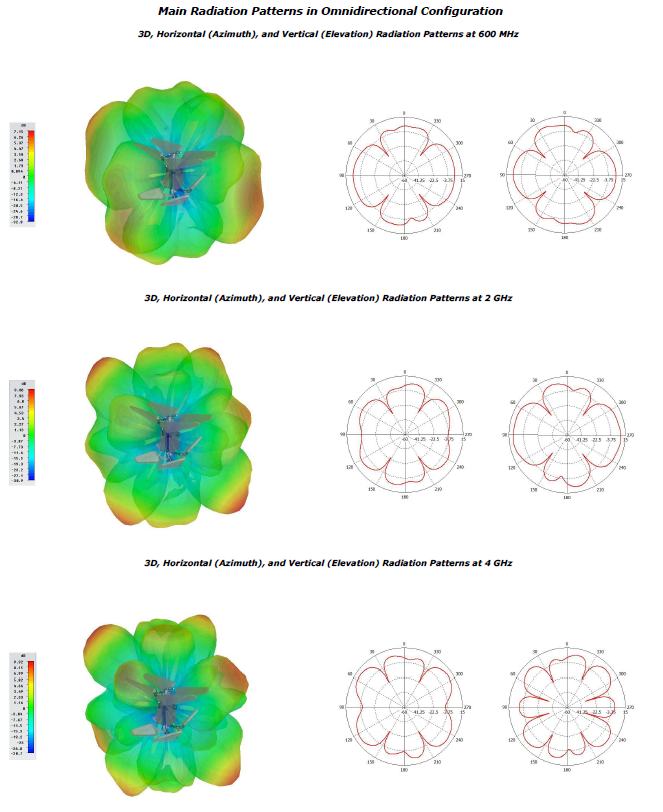

Basic Directional Charts
Technical characteristics
WIRENG DroneAnt-Plus antennas
Range of operating frequencies of the antenna system – from 500 to 6100 MHz
Mixed wave polarization +/- 45°
Nominal resistance of the antenna< /strong> 50 Ω
Acceptable antenna resistance range 45-78 Ω
Signal gain in omnidirectional configuration (Antenna gain range) 6.7 – 9.6 dBi< br />Signal gain in directional configuration (Range of antenna gain) 11.6 to 18.5 dBi
SWR (525-6000 MHz) (Range of voltage standing wave coefficient) 1 :1 to 1:2.8 Difference
Intermodulation IM3: -156 dBc
Beam width of the antenna system in the vertical plane of half power (see graph )
Beamwidth of the antenna system in the horizontal plane of half power (see graph)
Dome material (Antenna fairing material) </ span>ABS/FRP
Main material of internal elements Alloy
Material of bolts/nuts/washers/fasteners Stainless. steel
Color Light white
Wind resistance 125 km/h
Antenna operating temperature range -25 to 85 °C
Storage temperature range -35 to 115°C
Environmental conditions for the telecommunication region: ETSI EN 300 019-2-4
Connector type: HF-type N connector
Antenna mounting type: vertical pole (pole diameter from 20 mm to 40 mm)
Antenna system flammability rating for fairing: UL94 V-0
Antenna system protection marking: IP67 protected against dust, strong water jets, waves
Weight 14 kg
Dimensions of the assembled antenna 104 x 104 x 85 cm
Applicable markets Worldwide
Warranty 1 year
