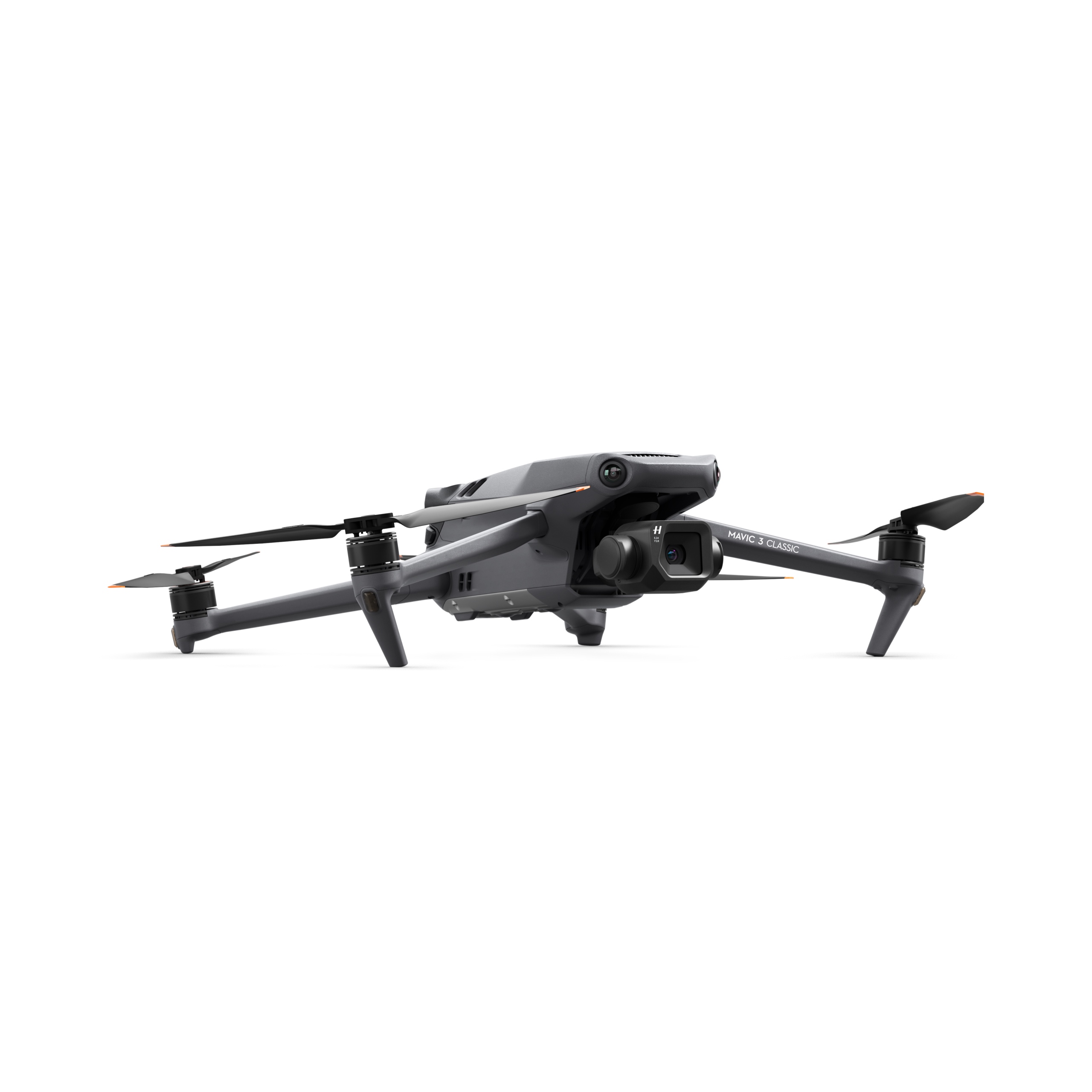

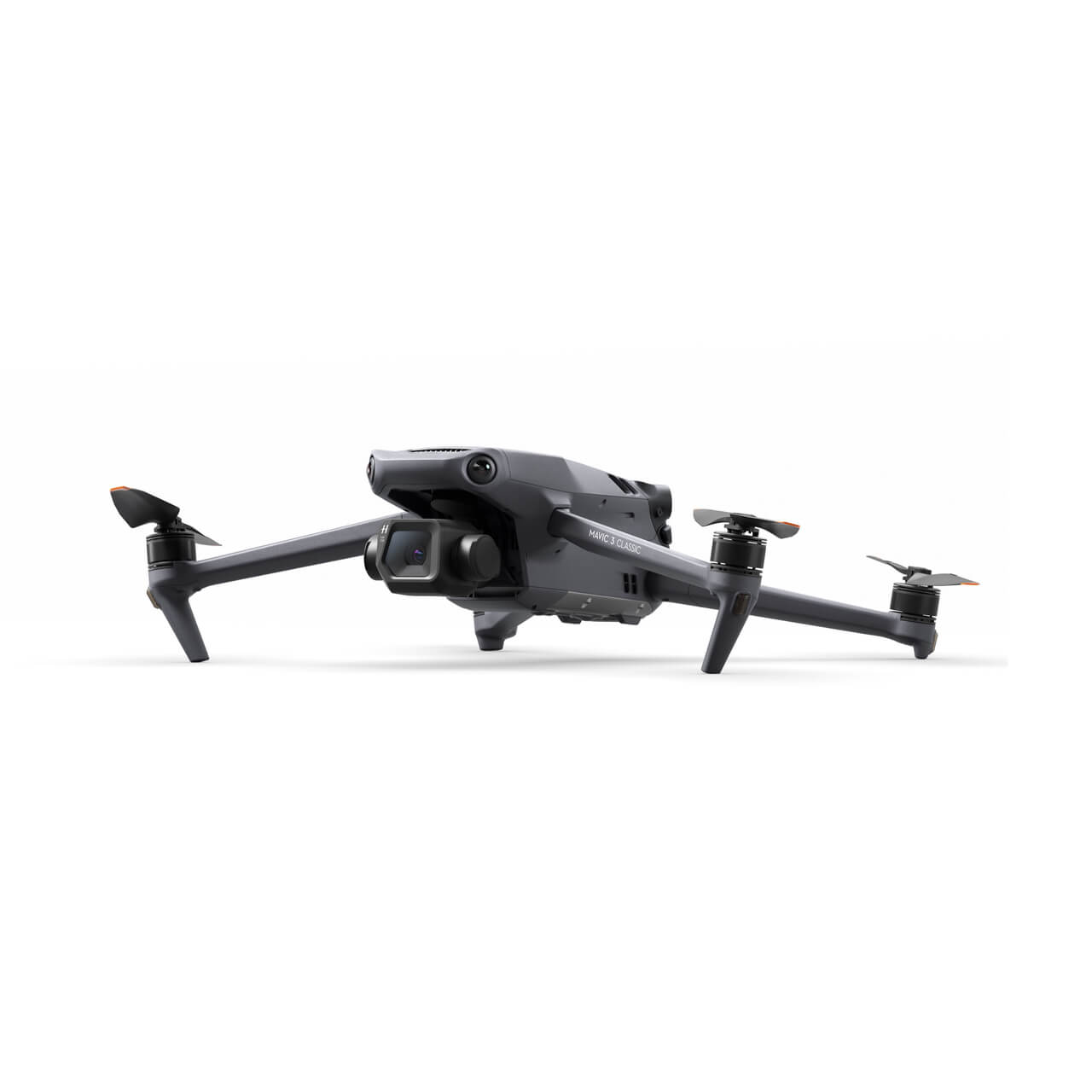

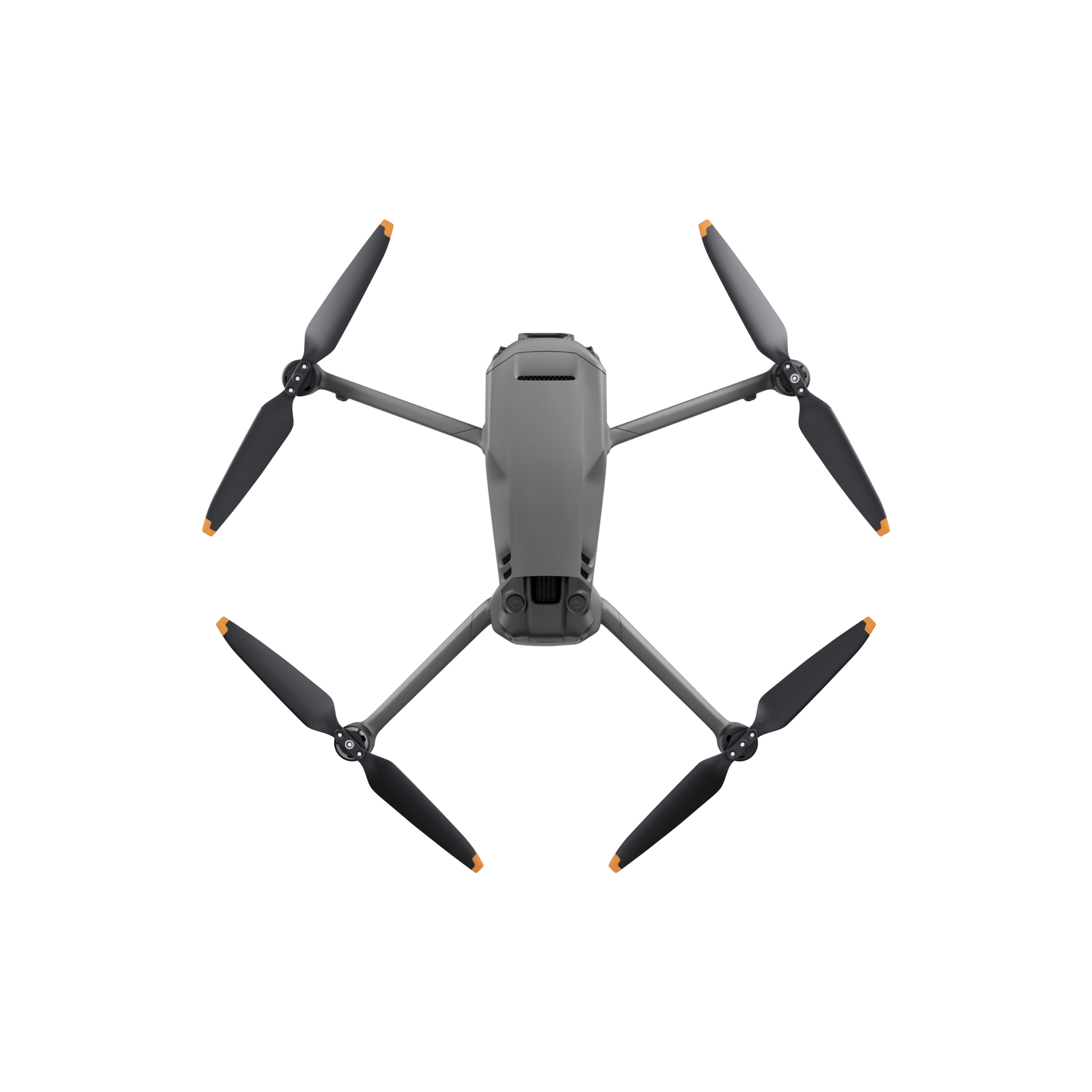

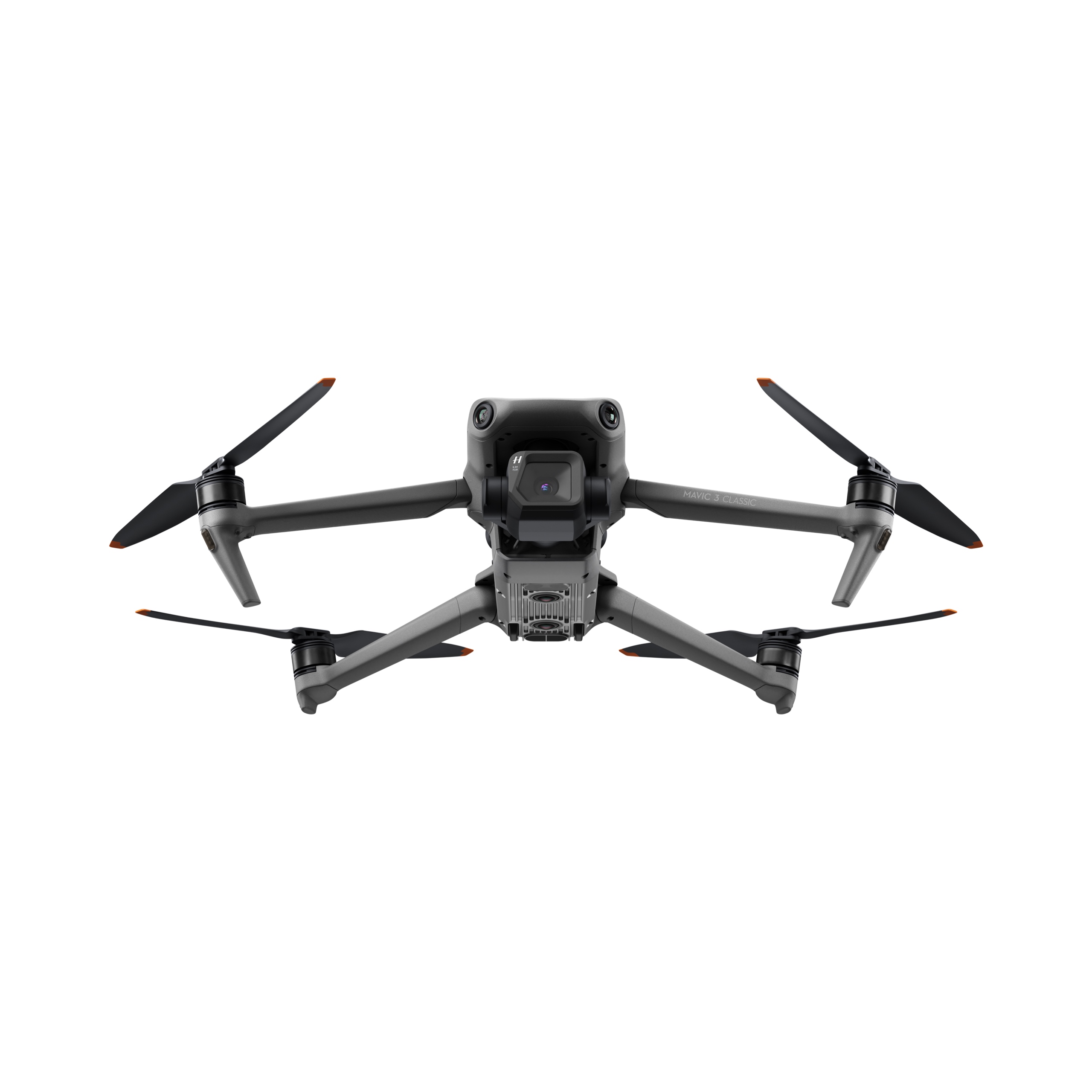

Quadcopter DJI Mavic 3 Classic

Name: Quadcopter DJI Mavic 3 Classic
SKU: 17-525-1-1-1-2-1-2-1-1
Price: 1900.00 EUR
Availability: BackOrder

DJI Mavic 3 Classic is a budget version of the standard DJI Mavic 3 quadcopter, which has only one main camera with a resolution of 5.1K without a zoom module. The kit comes with a new DJI RC remote control with a built-in high-resolution 5.5-inch display that allows you to view information even in bright sunlight.

– 15 km data transmission range
– 46 minutes flight duration
– Camera Hasselblad 5.1K
– Intelligent return home mode
– Comprehensive obstacle detection

1900,00 €

Available on backorder

SKU: 17-525-1-1-1-2-1-2-1-1 Categories: drones, For the experienced

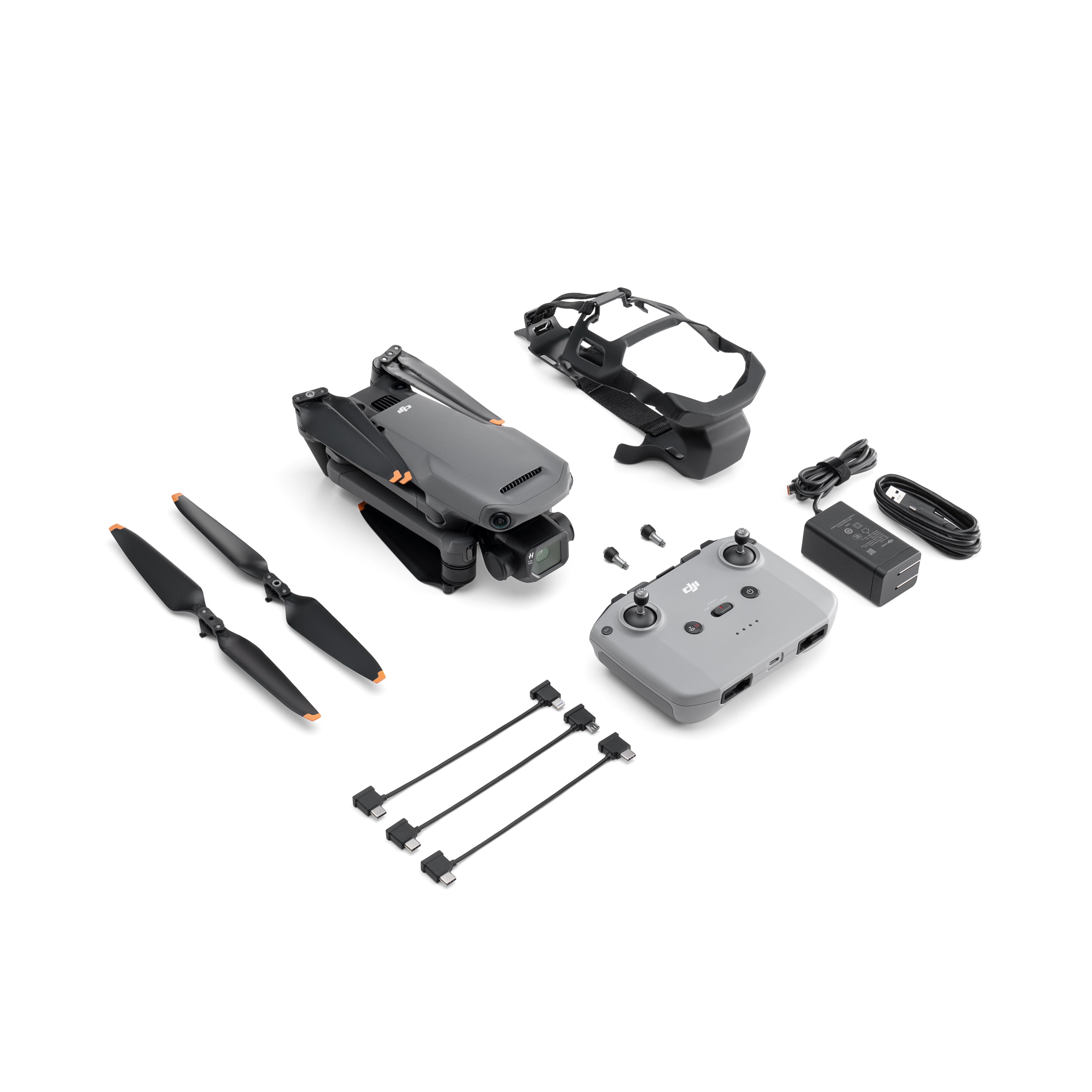

Complete set

Mavic 3 Classic quadcopter × 1
Upgraded DJI RC Controller × 1
DJI Mavic 3 × 1 battery
Cables for the control panel (Lightning, Micro USB, USB-C connectors) × 3
A pair of DJI Mavic 3 spare propellers (pair) × 3
DJI 65W Charger × 1
DJI Mavic 3 × 1 Suspension Bracket
Additional sticks for DJI RC-N1 controller (pair) × 1

Specifications

DJI Mavic 3 Classic
Explore

With powerful flight characteristics and a Hasselblad camera, the Mavic 3 Classic provides absolute the essence of the flagship image. Take it on any adventure to create unforgettable work.

Max flight time 46 min

HD video transmission for 15 km

4/3 CMOS Hasselblad camera

Dual TV cameras

Apple ProRes support with three cameras

Omnidirectional obstacle detection

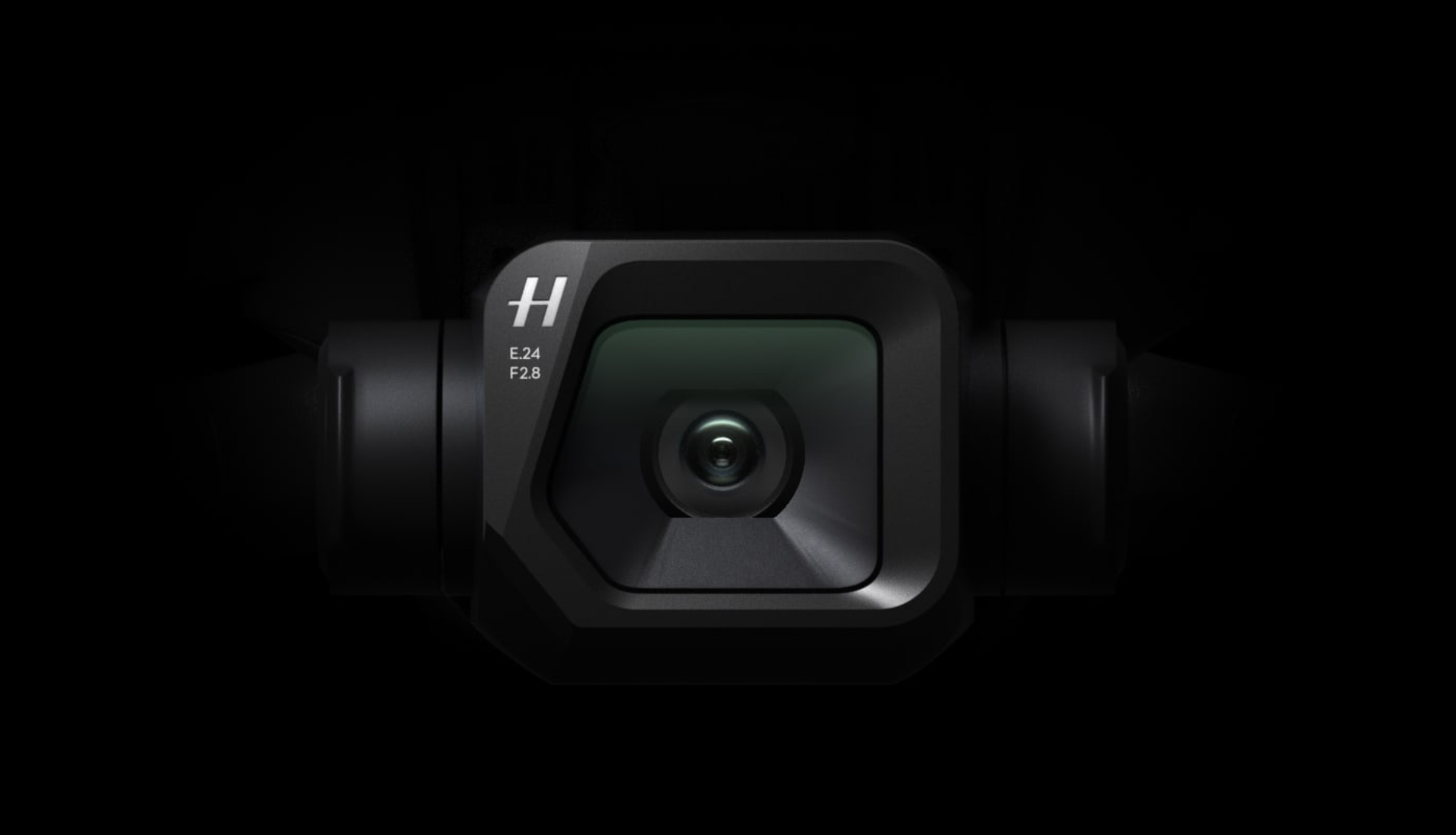

4/3 CMOS Hasselblad camera

Iconic Swedish brand Hasselblad designed and built the L2D-20c aerial camera specifically for the Mavic 3 series, packing professional-grade 4/3 CMOS into an incredibly compact space.

24 mm eq.

f/2.8-f/11

20 MP

Hasselblad Natural Color Solution (HNCS)

The Hasselblad camera supports 12-bit RAW photography with its own dynamic range of up to 12.8 stops, providing unforgettable image detail. Hasselblad Natural Color Solution (HNCS) accurately reproduces the colors perceived by the human eye, producing stunning images without the need for heavy processing or complex color presets.

Universal video specification

5.1K/50fps

Write the details more clearly. Supersampling technology allows you to record 4K/60fps footage

4K/120fps

Both high resolution and high frame rate produce slow-motion HD videos effortlessly.

10-bit D-Log M

Provides natural color gradations while preserving more highlight and shadow detail for more flexibility when editing.

HLG

Provides a wider dynamic range that is suitable for a variety of devices and provides footage that does not require color adjustments during publication.

Night shots

This video mode optimizes footage in low-light scenarios such as sunsets and sunrises, reducing noise for sharper shots.

More flight time

Mavic 3 Classic is compatible with Mavic 3-Series batteries, allows you to stay 40 minutes in hover and 46 minutes in flight< /span>, providing more time for creativity.

40 min hang time

46 min flight time

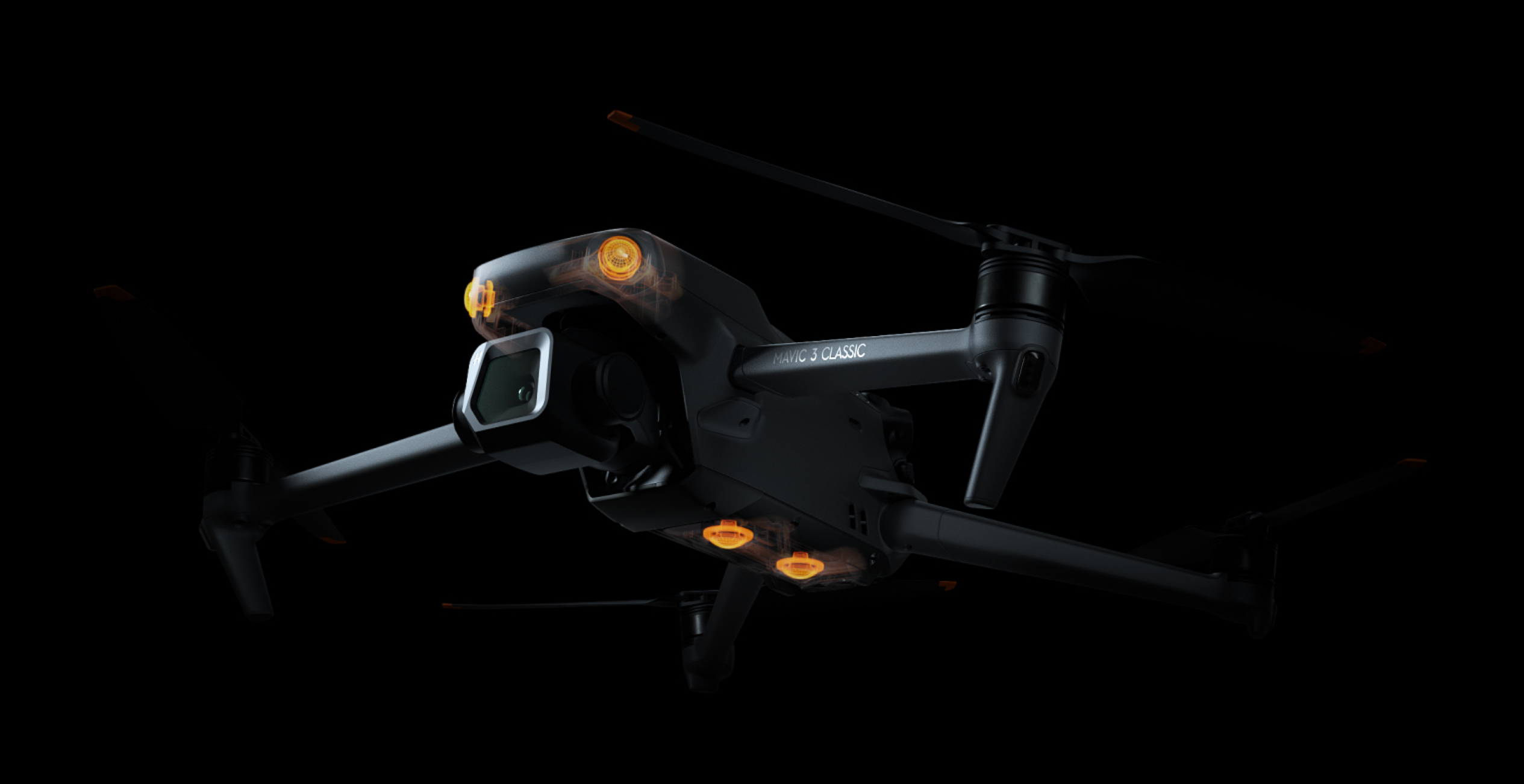

Omnidirectional obstacle detection and APAS 5.0

Mavic 3 Classic ensures that you fly safely and create in peace. Eight wide-angle vision sensors work flawlessly with a high-performance computing engine to accurately identify obstacles in all directions and plan a safe flight path to avoid them.

Vision Assist – creation of an antenna with increased security

Take your creativity to the next level with the help of visual assistance in different directions: front, back, left and right. A simple touch of the screen changes your view, helping you to anticipate obstacles in any direction while flying. This increased awareness allows you to make a safer and more effective course.

^{* The Vision Assist video in this section was shot using a DJI Mavic 3 Pro. The content displayed in the control interface is slightly different from that of DJI Mavic 3 and DJI Mavic 3 Classic. Please refer to actual experience.}

Multidirectional Awareness

Easily identify potential obstacles in the work interface and navigate confidently with intuitive controls. For camera movements such as panning or panning, side and back visual aids help you estimate spatial distances to the left, right, and back. You can also keep your forward view even when shooting at a wide angle.

Night care

Identify potential low-light obstacles as bright spots with visual guidance. This proves invaluable when nighttime lighting does not meet minimum obstacle avoidance standards. Enjoy shooting at night with added security.

Unlock Aerial Creativity

Introducing Vision Assist, your way to hassle-free creative shots and enhanced capabilities. By eliminating blind spots, you can confidently gain more control, paving the way for bolder, ultimate aerial artistry.

Flagship video transmission

With a transmission distance of up to 15 km fly further more sure The O3+ transmission can stream 1080p/60fps live. This means that the camera image is displayed with characteristics close to what the camera is actually recording. It also makes the Mavic 3 Classic more responsive to your control.

1080p/60fps

15 km video transmission distance

Extreme accuracy

Decimeter-level high-precision positioning makes the Mavic 3 Classic extremely stable when hovering. This not only results in sharper long-exposure shots, but also helps you record smoother slow-motion videos.

Flight Point

The Waypoint Flight feature takes automated flight to a new level. Mavic 3 Classic can automatically plan a flight route based on waypoints set by the user and can accurately repeat routes.

Cruise control

Control Mavic 3 Classic to fly in any direction without pressing the joysticks. This not only makes it easier to fly long distances, but also helps reduce hand shake for smoother camera movement.

Advanced RTH

Always end on a high note with Advanced Return to Home (RTH). This auto-return function can automatically determine a safe and efficient flight path back to the starting point. By combining the advantages of Advanced RTH and traditional RTH, the aircraft can easily avoid obstacles on the RTH route. The new AR RTH Route function can display the starting point and flight route in the operation interface to provide users with more direct visual information.

Useful features for intuitive creation

Active Track 5.0
Track your subject from different angles for enhanced camera language.

MasterShots
Automated filming and editing for creating cinematic material.

QuickShots

Automatically perform professional camera movements like Dronie, Rocket, Circle and Helix.

Hyperlapse

Stunning footage that captures and accelerates the passage of time.

Panorama

Take larger and more detailed pictures of your surroundings with panorama.

High Speed Fast Transfer

Photos and videos can be quickly transferred to your smartphone for editing or sharing.

Intelligent recognition and one-touch editing

LightCut

Connect the Mavic 3 Classic wirelessly to the LightCut app on your phone for quick clip previews and one-touch AI-based editing intelligence without the need to download the footage, saving memory on the phone. Try out the templates created especially for MasterShots, which will allow you to create amazing aerial videos that are awe-inspiring and awe-inspiring.

One touch editing

LightCut can recognize themes in footage and edit automatically. It can also de-structure MasterShots clips and instantly create videos using custom templates.

Aerial Photography Templates

Choose from a variety of templates with music and effects perfect for the sky to make your creations pop.

Wireless connection

Connect to the Mavic 3 Series wirelessly and save space on your phone with quick previews and automatic editing without having to take your video out of the plane.

Experience FPV flight easily

The Mavic 3 series camera drone can be used with DJI Goggles Integra, DJI Goggles 2 and DJI RC Motion 2, allowing you to enjoy FPV flight.

Technical characteristics
QUADROCOPTER MAVIC 3 CLASSIC

Maximum take-off weight: 895 g

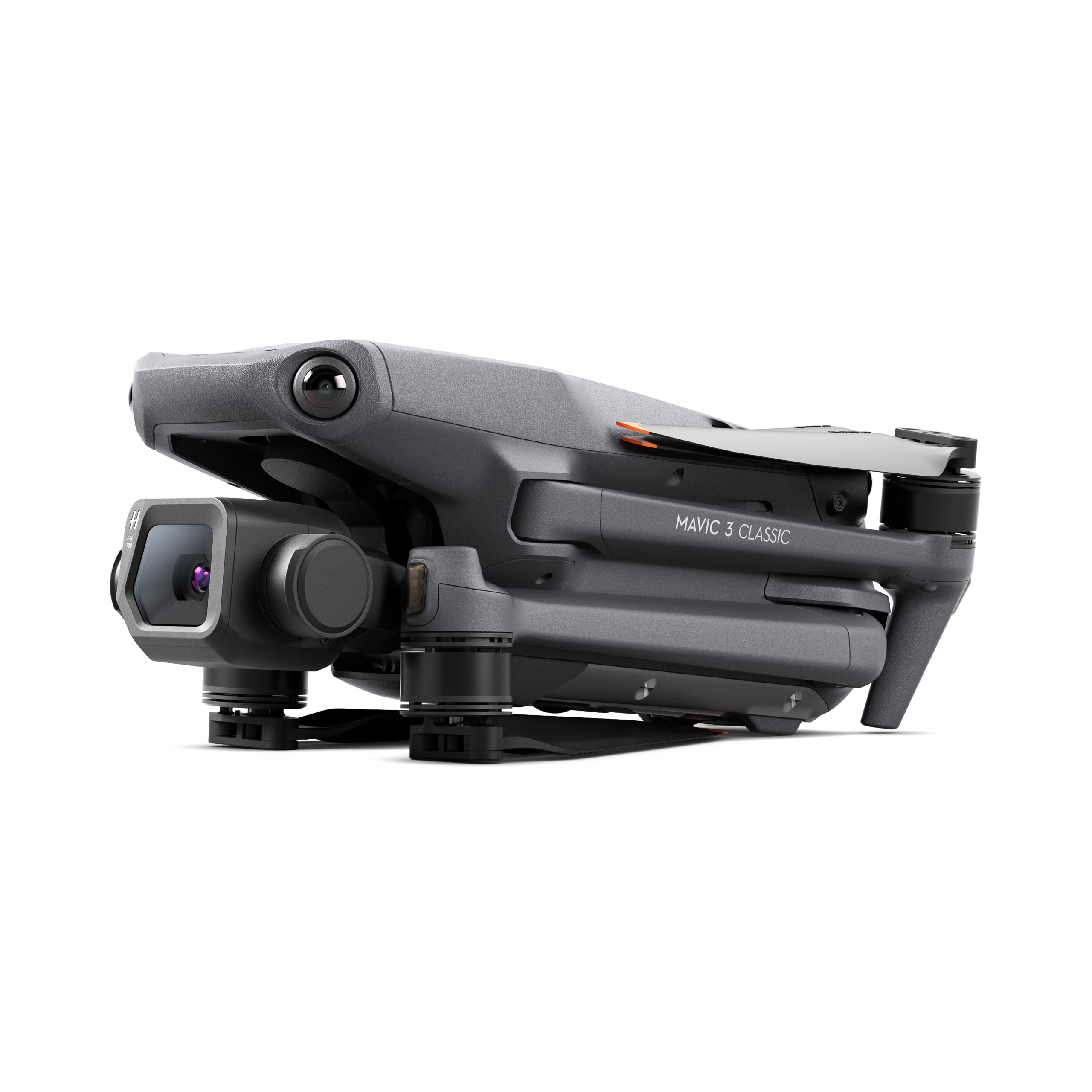

Dimensions:
- Folded (without screws): 221×96.3×90.3 mm (L×W×H)
- Expanded (without screws): 347.5×283×107.7 mm (L×W×H)
Maximum climbing speed: 8 m/s
Maximum speed of descent: 6 m/s
Maximum horizontal speed (at sea level, without wind): 21 m/s (not more than 19 m/s in EU regions)
Maximum take-off height: 6000 m
Maximum flight time: 46 minutes (measured in a controlled test environment)
Maximum air retention time: 40 minutes (measured in a controlled test environment)
Maximum flight distance: 30 km
Maximum wind resistance: 12 m/s
Maximum roll angle: 35°
Operating temperature: from -10° to 40° C
Global navigation satellite communication system: GPS + Galileo + BeiDou
Range of accuracy of holding in the air:
- Vertical: ±0.1 m (with visual positioning), ±0.5 m (with GNSS positioning)
- Horizontal: ±0.3 m (with visual positioning), ±0.5 m (with high-precision positioning system)
Internal memory: 8 GB (approximately 7.9 GB available space)

Cardan suspension

Stabilization: 3-axis mechanical suspension
Mechanical range:
- Inclination: from -135° to 100°
- Rotation: -45° to 45°< /div>
- Pan: -27° to 27°< /div>
Controlled Range:
- Inclination: from -90° to 35°
- Pan: -5° to 5°< /div>
Maximum control speed (inclination): 100°/s
Angular oscillation range: ±0.007°

Hasselblad camera

Image sensor: 4/3 CMOS, Effective number of pixels: 20 MP
Lens:
- Field of View (FOV): 84°
- Format equivalent: 24 mm
- Aperture: f/2.8-f/11
- Focus: from 1 m to infinity
ISO range:
- Video:
  - Normal, slow motion:
    - 100-6400 (normal color)
    - 400-1600 (D-Log)
    - 100-1600 (D-Log M)
    - 100-1600 (HLG)
  - Night mode:
    - 800-12800 (normal color)
- Photo: 100-6400
Shutter speed: 8-1/8000 s
Max image size: 5280×3956
Photography modes:
- Single frame: 20 MP
- Continuous shooting: 20 MP, 3/5/7 frames
- Automatic exposure control (AEB): 20 MP, 3/5 frames with 0.7 EV steps
- Delay: 20 MP, 2/3/5/7/10/15/20/30/60 s
Photo format: JPEG/DNG (RAW)
Video resolution:
- H.264/H.265
  - 5.1K: 5120×2700@24/25/30/48/50 fps
  - DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps
  - 4K: 3840×2160@24/25/30/48/50/60/120* fps
  - FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps
- Frequency of recording frames. The corresponding video is played as a slow motion video.
Video format: MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Maximum video bitrate: H.264/H.265: 200 Mbps
Supported file system: exFAT
Color mode: Normal/HLG/D-Log/D-Log M
Digital zoom: 3× (video mode only)

Probing

Sensor Type: Omnidirectional binocular vision system, supplemented by an infrared sensor in the lower part of the aircraft.

Forward

Measuring range: 0.5-20 m
Detection range: 0.5-200 m
Effective sensor speed: Flight speed ≤ 15 m/s
Field of vision: Horizontal 90°, Vertical 103°

Back

Measuring range: 0.5-16 m
Effective measuring speed: Flight speed ≤ 12 m/s
Field of vision: 90° horizontally, 103° vertically

Side

Measuring range: 0.5-25 m
Effective measuring speed: Flight speed ≤ 15 m/s
Field of vision: 90° horizontally, 85° vertically

Measuring range: 0.2-10 m
Effective measuring speed: Flight speed ≤ 6 m/s
Field of vision: Front and back 100°, Left and right 90°

Down

Measuring range: 0.3-18 m
Effective measuring speed: Flight speed ≤ 6 m/s
Field of vision: Front and back 130°, Left and right 160°

Operating environment

Forward, Back, Left, Right and Up: Surfaces with noticeable patterns and sufficient lighting (lux >15)
Bottom: Surfaces with prominent patterns, diffuse reflectance >20% (eg walls, trees, people) and sufficient lighting (lux >15)

Transfer video

Video transmission system O3+

Live View Quality

Remote control: 1080p/30fps, 1080p/60fps

Operating frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Transmission Power (EIRP)

2.400-2.4835 GHz:
- < 33 dBm (FCC)
- < 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
- < 33 dBm (FCC)
- < 30 dBm (SRRC)
- < 14 dBm (CE)

Maximum transmission distance (without interference)

FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km

Maximum transmission distance (with obstacles)

Strong obstacles: approx. 1.5-3 km
Average obstacles: approx. 3-9 km
Low level of interference: approx. 9-15 km

Maximum download speed

O3+:
- 5.5 MB/s (with DJI RC-N1 remote control)
- 15 MB/s (with DJI RC Pro)
- 5.5 MB/s (with DJI RC)
Wi-Fi 6: 80 MB/s*

Lowest Latency

130 ms (with DJI RC-N1 remote control)
120ms (with DJI RC Pro)
130 ms (with DJI RC)

Antennas

4 antennas, 2T4P

Battery

Capacity: 5000 mAh
Weight: 335.5 g
Nominal voltage: 15.4 V
Charging voltage limit: 17.6
Type: Lithium-ion 4S
Energy: 77 Wh
Charging temperature: 5° to 40° C (41° to 104° F)
Charging time: Approx. 96 minutes

Charger:

Login:
- Voltage range: 100-240 V (alternating current)
- Frequency: 47-63 Hz
- Current: 2 A
Output:
- USB-C:
  - 5 V, 5 A
  - 9 V, 5 A
  - 12 V, 5 A
  - 15 V, 4.3 A
  - 20 V, 3.25 A
  - 5-20 V, 3.25 A
- USB-A:
  - 5 V, 2 A
Nominal power: 65 W

Battery charging hub:

Login:
- USB-C: 5-20 V, max. 5 A
Output:
- Battery port: 12-17.6V, max. 5 A
Nominal power:
- DJI Mavic 3 charging hub: 65 W
- DJI Mavic 3 Charging Hub (100W): 100W
Type of charging:
- Three batteries are charged in series
Compatibility:
- DJI Mavic 3 Intelligent Flight Battery

Car charger:

Login:
- Car power consumption: 12.7-16 V, 6.5 A, nominal voltage 14 V (direct current)
Output (USB-C):
- 5 V, 5 A
- 9 V, 5 A
- 12 V, 5 A
- 15 V, 4.3 A
- 20 V, 3.25 A
- 5-20 V, 3.25 A
Output (USB-A):
- 5 V, 2 A
Nominal power: 65 W
Charging temperature: 5° to 40° C (41° to 104° F)

Storage:

Recommended microSD cards:
- Lexar 1066x 64GB V30 A2 microSDXC
- Lexar 1066x 128GB V30 A2 microSDXC
- Lexar 1066x 256GB V30 A2 microSDXC
- Lexar 1066x 512GB V30 A2 microSDXC
- SanDisk High Endurance 64 GB V30 microSDXC
- SanDisk High Endurance 128GB V30 microSDXC
- SanDisk High Endurance 256GB V30 microSDXC
- Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
- Kingston Canvas Go! Plus 128 GB V30 A2 microSDXC
- Kingston Canvas Go! Plus 256 GB V30 A2 microSDXC
- Kingston Canvas Go! Plus 512 GB V30 A2 microSDXC

Remote control:

Maximum operating time (DJI RC-N remote control)
- Without charging any mobile device: 6 hours
- When charging a mobile device: 4 hours
Maximum supported mobile device size:
- DJI RC-N1 remote control: 180×86×10 mm (L×W×H)
Operating temperature:
- DJI RC-N1 Remote Control: -10° to 40° C (14° to 104° F)
Transmitter power (EIRP):
- DJI RC-N1 remote control: 2.400-2.4835

Mavic 3 Classic quadcopter × 1
Updated DJI RC Controller × 1
DJI Mavic 3 × 1 Battery
Cables for the control panel (Lightning, Micro USB, USB-C connectors) × 3
A pair of DJI Mavic 3 spare propellers (pair) × 3
DJI 65W × 1 charger
DJI Mavic 3 × 1 Suspension Lock
Additional sticks for DJI RC-N1 controller (pair) × 1
