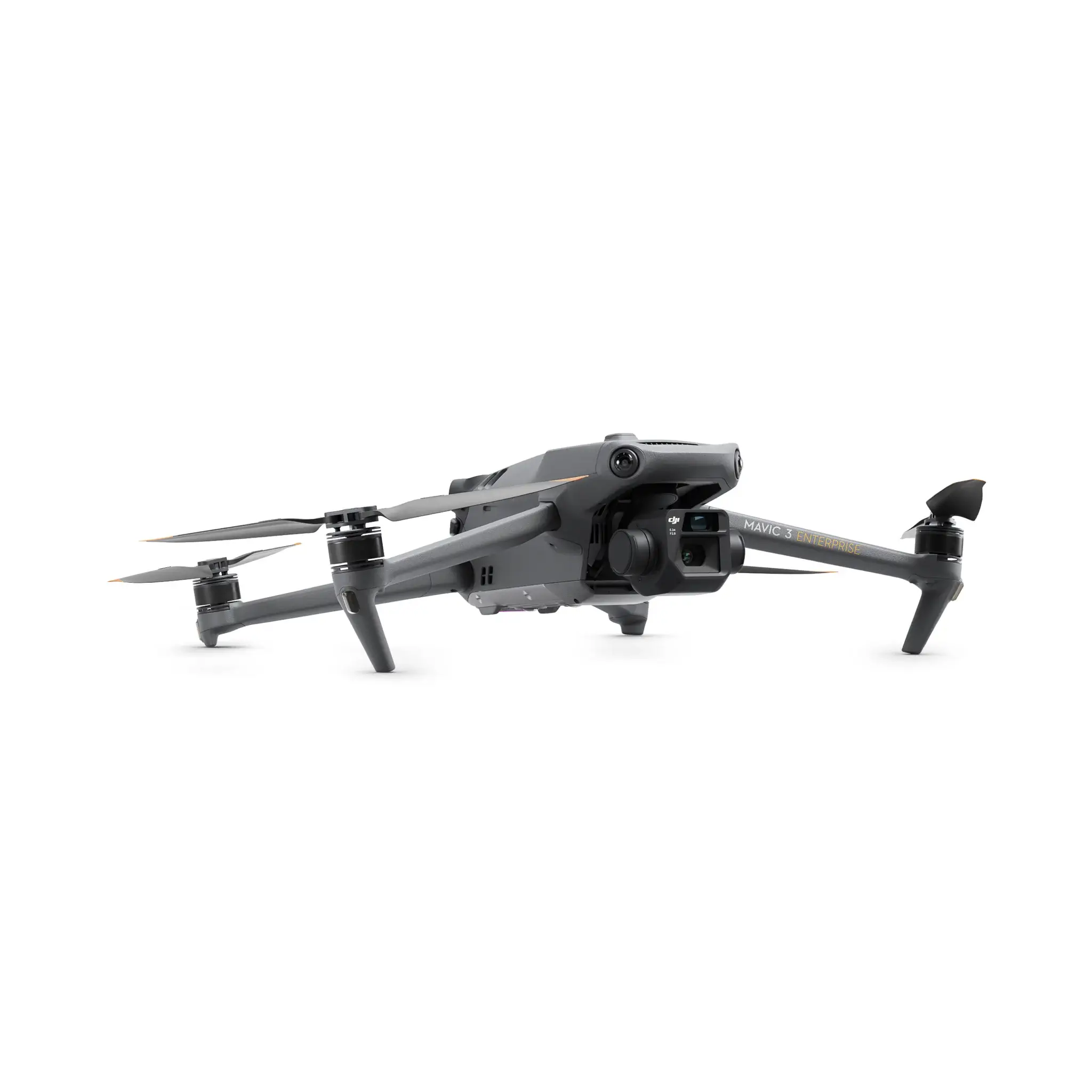

Quadcopter DJI Mavic 3 Thermal Universal Edition

A compact, powerful professional drone with a wide-angle camera. With its mechanical shutter, 56x zoom camera and centimeter-accurate RTK module, the Mavic 3E takes mapping and mission efficiency to new heights. For firefighting, search and rescue missions, inspections and night operations, a thermal imaging version of the Mavic 3T is offered.

– 15 km data transmission range
– 45 minutes flight duration
– 4/3 CMOS sensor
– 56× zoom (Zoom)
– RTK module for positioning accuracy up to cm
– Comprehensive detection of obstacles

5000,00 €

Out of stock

SKU: 17-525-1-1-1-2-1-3 Categories: ,
Complete set

Mavic 3E quadcopter × 1
DJI RC-N1 Pro Enterprise remote control × 1
DJI Mavic battery 3×1
Cable for the controller (Lightning, Micro USB, USB-C connectors) × 3
A pair of DJI Mavic 3 spare propellers (pair) × 3
DJI 100W Charger × 1
DJI Mavic Hanger 3×1
Protective Case × 1
Plastic case Hard shell case × 1
Memory card 64GB × 1

Specifications

DJI Mavic 3 Enterpris

Quadcopter for any mission

DJI Mavic 3 Enterprise Series is a new standard in the field of commercial drones. With a mechanical shutter, a 56x zoom camera and an RTK module for centimeter-accurate positioning, the Mavic 3E takes mapping and mission efficiency to a new level

45 min

Max flight time

48 MP

Wide-angle camera

640×512px

Thermal imaging camera

x56

Hybrid zoom

Compact

Control panel

Positioning to cm

Loudspeaker

Compact and portable

Simple and compact, the Mavic 3 Enterprise Series can be carried in one hand and deployed at any time. Ideal for both novice and veteran pilots, it is built for long-duration missions.

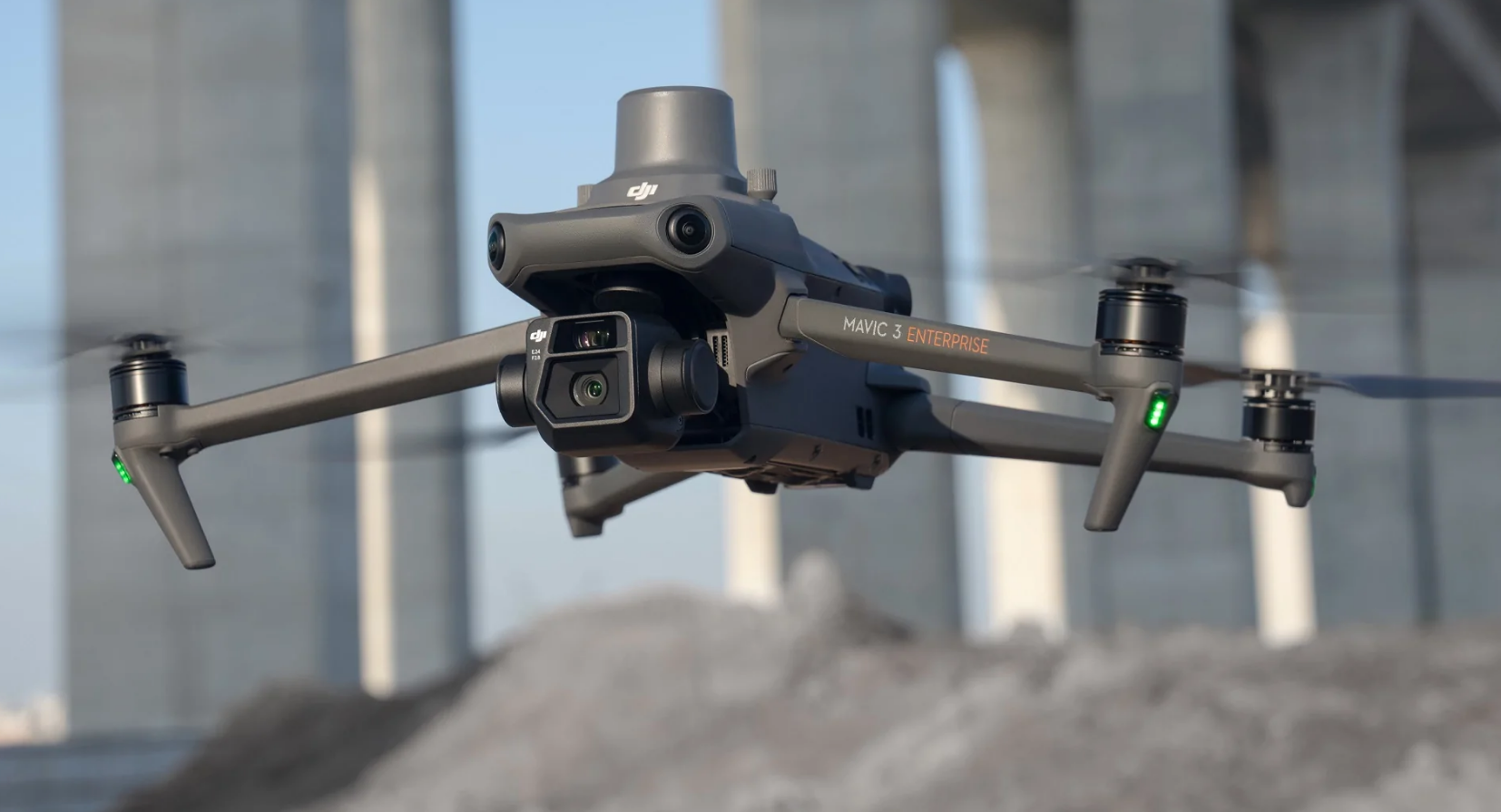

Two models, countless uses

Wide-angle camera

4/3 CMOS, 20 MP, mechanical shutter

TV camera

Equivalent focal length:
162 mm, 12 MP, 56x hybrid magnification

Wide-angle camera

Equivalent focal length: 24 mm, 48 MP

Additional zoom camera

Equivalent focal length: 162mm, 12MP, 56x hybrid zoom

Thermal camera

DFOV: 61°, equivalent focal length: 40mm, resolution 640 × 512

More details about DJI MAVIC 3T

Explore at speed

The Mavic 3 Enterprise Series quadcopters feature a mechanical shutter to prevent motion blur and maintain high-speed shooting at 0.7 second intervals. Complete mapping missions with extreme efficiency without the need for ground control points.



Improved low-light performance

The wide-angle camera Mavic 3E features large pixels measuring 3.3 μm, which, together with the intelligent low-light mode, offers significantly improved performance in low-light conditions.

Focus and explore

Mavis 3E is equipped with a 12-megapixel zoom camera that supports hybrid zoom up to 56× for viewing important details from a distance.

See what the human eye cannot see

DJI Mavic 3 Thermal is equipped with an advanced thermal imaging camera that can detect temperature differences in objects. This allows specialists to detect thermal signatures and recognize invisible anomalies. With a resolution of 640 x 512 pixels, the thermal imaging camera simultaneously acquires thermal and RGB images, providing a complete understanding of the situation.

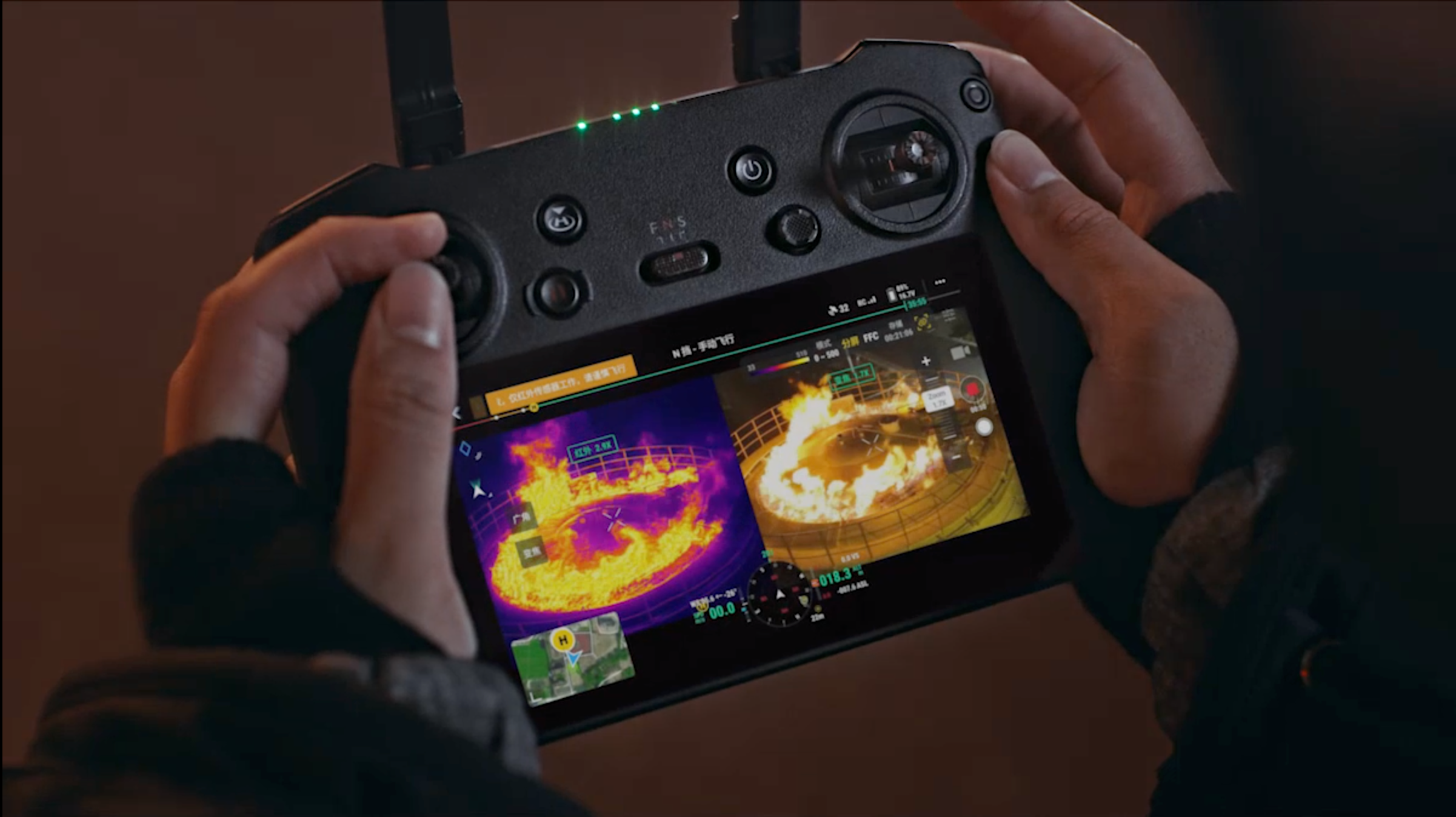

Simultaneous double screen zoom

Mavic 3T cameras support 28x continuous zoom for easy comparison.

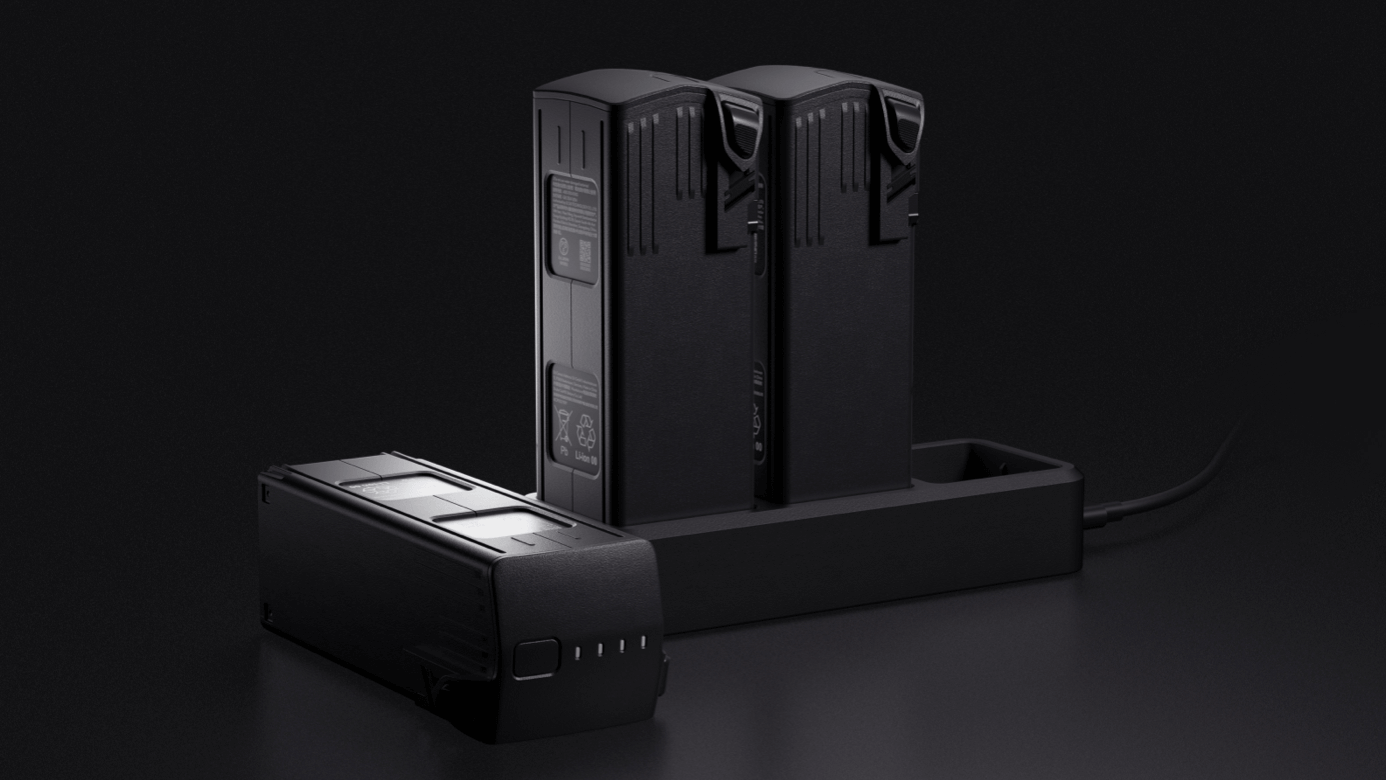

Batteries for endurance

A 45-minute flight duration allows you to cover more territory, conducting surveys of up to 2 square kilometers in a single flight. Quickly charge the batteries using the 100W power charging hub or directly through the drone’s 88W.

45 minutes
Maximum flight time

New generation image transmission system

Four O3 Enterprise Transmission antennas provide more stable connections in various complex environments.

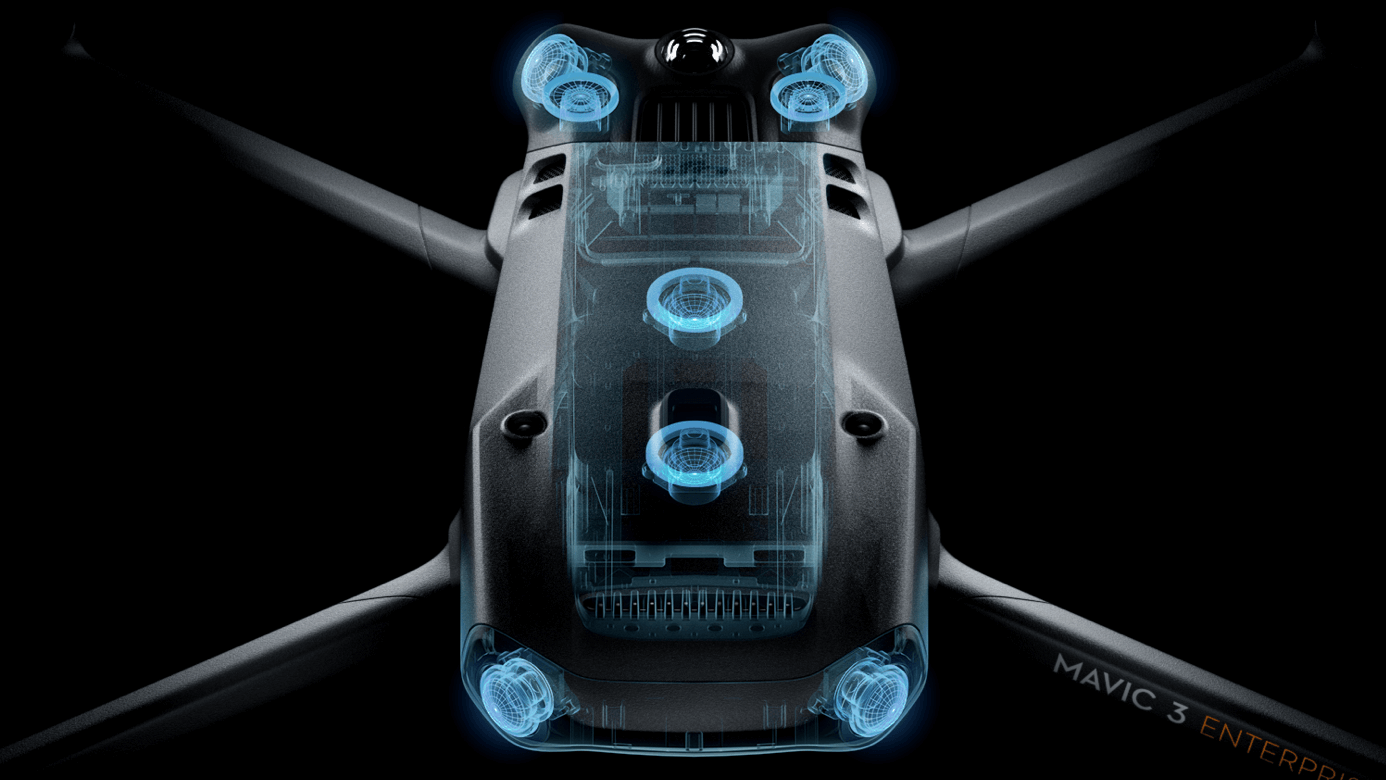

Omnidirectional sensing for safe flight.

COMPREHENSIVE DETECTION OF OBSTACLES

The quadcopter is equipped with wide-angle lenses on all sides for omnidirectional obstacle avoidance without blind spots. Adjust approach signals and stopping distance depending on mission requirements.

HOME RETURN

Returning the Mavic 3 Enterprise series to the base makes the process of flying and controlling the quadcopter even more interesting, because when returning back, obstacles will not interrupt the video recording process. All objects around the Mavic 3 will be recognized in all directions, and the drone will go around them smoothly and quickly. The Advanced RTH system automatically plans the optimal route home, saving energy and time, and is designed for long-duration missions.

Flight routes

Simple and compact, the Mavic 3 Enterprise Series can be carried in one hand and deployed at any time. Ideal for both novice and veteran pilots, it is built for long-duration missions.

Real-time location tracking

Automatically adjust altitude when mapping areas with varying altitudes without the need to import external altitude data thanks to the Mavic 3E’s omnidirectional sensor.

Intelligent tilt capture

Make your oblique photography mission more efficient with Smart Oblique Capture. During flight, the gimbal automatically rotates in three directions: front, middle and back. Two routes can collect all the photos at the angles required for high-precision 3D modeling.

Live recording of the mission

Record mission activities such as aircraft movement, gimbal orientation, photography and zoom level to create sample mission files for future automated flights.

Corridor mission planning

Create automated flight missions on highways, rivers, oil pipelines, and more with corridor mission planning. Simply draw a line on the map and it will divide the area into mappable segments for easy surveying.

Technical Specifications
QUADCOPTER MAVIC 3E

Dimensions:
• Folded (without screw): 221 × 96.3 × 90.3 mm (L × W × H)
• Unfolded (without screw): 347.5 × 283 × 107.7 mm (L × W × H)
Diagonal length: 380.1 mm

Weight (with batteries, screws, without accessories): 915 g

Maximum take-off weight: 1,050 g

Operating frequencies:
2.400 – 2.4835 GHz
5.725 – 5.850 GHz

Maximum flight time – 45 minutes

Accuracy of holding in place:
Vertical: ±0.1 m (with vision sensors)
±0.5 m (with GNSS) ±0.1 m (with RTK)
Horizontally:
±0.3 m (with vision sensors)
±0.5 m (with high-precision positioning system)
±0.1 m (with RTK)

Positioning accuracy
With activated RTK (optional) and installed:
Horizontal: 1 cm + 1 ppm
Vertical: 1.5 cm + 1 ppm

Maximum flight height: 6,000 m Maximum air speed: 15 m/s Maximum wind resistance: 12 m/s

Wide-angle camera

  • Sensor: 4/3 CMOS, Effective pixels: 20 MP
  • Lens:
    • FOV: 84°
    • Format equivalent: 24 mm
    • Aperture: f/2.8-f/11
    • Focus: 1m to ∞
  • ISO range: 100-6400
  • Shutter speed: Electronic shutter: 8-1/8000 s, Mechanical shutter: 8-1/2000 s
  • Max image size: 5280×3956
  • Photography modes:
    • Single: 20MP
    • over time: 20 MP
    • Intelligent shooting mode in low light conditions: 20 MP
    • Panoramic: 20 MP (raw image)
  • Video resolution:
    • H.264
      • 4K: 3840×2160@30fps
      • FHD: 1920×1080@30fps
  • Video bitrate:
    • 4K: 130 Mbps
    • FHD: 70 Mbps
  • Supported file formats: exFAT
  • Photo format: JPEG/DNG (RAW)
  • Video format: MP4 (MPEG-4 AVC/H.264)

TV camera

  • Sensor:
    • 1/2-inch CMOS, Effective pixels: 12 MP
  • Lens:
    • FOV: 15°
    • Format equivalent: 162 mm
    • Aperture: f/4.4
    • Focus: 3m to ∞
  • ISO range:
    • 100-6400
  • Shutter speed:
    • Electronic shutter: 8-1/8000 s
  • Max image size:
    • 4000×3000
  • Photo format:
    • JPEG
  • Video format:
    • MP4 (MPEG-4 AVC/H.264)
  • Photography modes:
    • Single: 12 MP
    • Timed: 12 MP
    • JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    • Smart low-light shooting: 12 MP
  • Video resolution:
    • H.264
      • 4K: 3840×2160@30fps
      • FHD: 1920×1080@30fps
  • Bitrate:
    • 4K: 130 Mbps
    • FHD: 70 Mbps
  • Digital zoom:
    • 8x (56x hybrid magnification)

Type: An omnidirectional binocular vision system, supplemented by an infrared sensor in the lower part of the aircraft.

Forward:

  • Measuring range: 0.5-20 m
  • Detection range: 0.5-200 m
  • Effective sensor speed: Flight speed ≤15 m/s
  • Field of vision: Horizontal 90°, Vertical 103°

Back:

  • Measuring range: 0.5-16 m
  • Effective measuring speed: Flight speed ≤12 m/s
  • Field of vision: 90° horizontally, 103° vertically

Side:

  • Measuring range: 0.5-25 m
  • Effective measuring speed: Flight speed ≤15 m/s
  • Field of vision: Horizontal 90°, Vertical 85°

Up:

  • Measuring range: 0.2-10 m
  • Effective measuring speed: Flight speed ≤6 m/s
  • Field of vision: front and back 100°, left and right 90°

Down:

  • Measuring range: 0.3-18 m
  • Effective measuring speed: Flight speed ≤6 m/s
  • Field of vision: front and back 130°, left and right 160°

Operating environment:

  • Forward, backward, sideways and upward: a surface with a clear pattern and sufficient illumination (lux >15)
  • Bottom: Diffuse reflective surface with diffuse reflectivity >20% (eg walls, trees, people) and sufficient lighting (lux >15)

Video transmission system: DJI O3 Enterprise Transmission

Live View Quality:

  • Remote control: 1080p/30fps

Operating frequency:

  • 2.400-2.4835 GHz
  • 5.725-5.850 GHz

Maximum transmission distance (no interference, no interference):

  • FCC: 15 km
  • CE: 8 km
  • SRRC: 8 km
  • MIC: 8 km

Maximum transmission distance (with obstacles):

  • Strong obstructions (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
  • Medium obstacles (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
  • Low interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)

Maximum download speed: 15 MB/s (with DJI RC Pro Enterprise)

Latency (depending on environmental conditions and mobile device): approx. 200 ms

Antenna: 4 antennas, 2T4R

Transmission Power (EIRP):

  • 2.4GHz: <33dBm (FCC), <20dBm (CE/SRRC/MIC)
  • 5.8GHz: <33dBm (FCC), <30dBm (SRRC), <14dBm (CE)

DJI RC Pro Enterprise

  • Video transmission system: DJI O3 Enterprise Transmission
  • Maximum transmission distance (no interference, no interference):
    • FCC: 15 km
    • CE/SRRC/MIC: 8 km
  • Operating video transmission frequency:
    • 2.400-2.4835 GHz
    • 5.725-5.850 GHz
  • Antenna:
    • 4 antennas, 2T4R
  • Video Transmitter Power (EIRP):
    • 2.4GHz: <33dBm (FCC), <20dBm (CE/SRRC/MIC)
    • 5.8GHz: <33dBm (FCC), <14dBm (CE), <23dBm (SRRC)
  • Wi-Fi protocol: 802.11 a/b/g/n/ac/ax
  • 2×2 MIMO Wi-Fi support
  • Wi-Fi operating frequency:
    • 2.400-2.4835 GHz
    • 5.150-5.250 GHz
    • 5.725-5.850 GHz
  • Wi-Fi transmitter power (EIRP):
    • 2.4GHz: <26dBm (FCC), <20dBm (CE/SRRC/MIC)
    • 5.1GHz: <26dBm (FCC), <23dBm (CE/SRRC/MIC)
    • 5.8GHz: <26dBm (FCC/SRRC), <14dBm (CE)
  • Bluetooth protocol: Bluetooth 5.1
  • Bluetooth operating frequency: 2.400-2.4835 GHz
  • Bluetooth transmitter power (EIRP): < 10 dBm
  • Screen resolution: 1920×1080
  • Screen size: 5.5 inches
  • Screen: 60 fps
  • Brightness: 1000 nits
  • Touch screen control: 10-point multi-touch
  • Battery: Lithium-ion (5000 mAh at 7.2 V)
  • Charging Type: Recommended to charge with DJI USB-C Power Adapter (100W) or 12V or 15V USB Charger
  • Nominal power: 12 W
  • Storage capacity:
    • Internal memory (ROM): 64 GB
    • Supports microSD card for capacity expansion
  • Charging time:
    • approx. 1 hour 30 minutes (using the DJI USB-C Power Adapter (100W), which only charges from the remote control or USB charger at 15V)
    • Approx. 2 hours (with 12V USB charger)
    • Approx. 2 hours 50 minutes (using the DJI USB-C Power Adapter (100W), which simultaneously charges the aircraft and the remote controller)
  • Working time: approx. 3 hours
  • Video output port: Mini-HDMI port
  • Operating temperature range: -10° to 40° C (14° to 104° F)
  • Storage temperature:
    • -30° to 60° C (-22° to 140° F) (for one month)
    • -30° to 45° C (-22° to 113° F) (one to three months)
    • -30° to 35° C (-22° to 95° F) (three to six months)
    • from -30° to 25° C (from -22° to 77° F) (more than six months)
  • Supported DJI aircraft: DJI Mavic 3E, DJI Mavic 3T
  • GNSS: GPS+Galileo+GLONASS
  • Dimensions:
    • Antennas in folded state and joysticks disconnected: 183.27×137.41×47.6 mm (L×W×H)
    • Expanded antennas and mounted control sticks: 183.27×203.35×59.84 mm (L×W×H)
  • Weight: approx. 680 g
  • Model: RM510B

Battery

  • Capacity: 5000 mAh
  • Standard voltage: 15.4 V
  • Maximum charging voltage: 17.6 V
  • Type: LiPo 4S
  • Chemical system: LiCoO2
  • Energy: 77 Wh
  • Weight: 335.5 g
  • Charging temperature: 5° to 40° C (41° to 104° F)

Charger

  • Input: 100-240 V (AC), 50-60 Hz, 2.5 A
  • Output power: 100 W
  • Output:
    • Maximum 100 W (total)
    • When using both ports, the maximum output power of each interface is 82 W, and the charger will dynamically distribute the output power of the two ports depending on the load power.

Charging hub

  • Input: USB-C: 5-20V, 5.0A
  • Output: Battery Port: 12-17.6V, 8.0A
  • Nominal power: 100 W
  • Charging type: Charging three batteries in series
  • Charging temperature range: 5° to 40° C (41° to 104° F)

RTK module

  • Dimensions: 50.2×40.2×66.2 mm (L×W×H)
  • Weight: 24±2 g
  • Interface: USB-C
  • Power: Approximately 1.2 W
  • RTK positioning accuracy:
    • Continuous RTK communication:
      • Horizontal: 1 cm + 1 ppm;
      • Vertical: 1.5 cm + 1 ppm

Speaker

  • Dimensions: 114.1×82.0×54.7 mm (L×W×H)
  • Weight: 85±2 g
  • Interface: USB-C
  • Rated power: 3 W
  • Maximum volume [11]: 110 dB @ 1 m
  • Effective transmission distance [11]: 100 m @ 70 dB
  • Bitrate: 16 Kbit/s, 32 Kbit/s
  • Operating temperature range: -10° to 40° C (14° to 104° F)

Mavic 3E × 1 quadcopter
DJI RC-N1 Pro Enterprise remote control × 1
DJI Mavic 3×1 battery
Cable for the control panel (Lightning, Micro USB, USB-C connectors) × 3
A pair of DJI Mavic 3 spare propellers (pair) × 3
DJI 100W charger × 1
DJI Mavic 3×1 suspension retainer
Protective case × 1
Plastic case Hard shell case × 1
Memory card 64GB × 1
