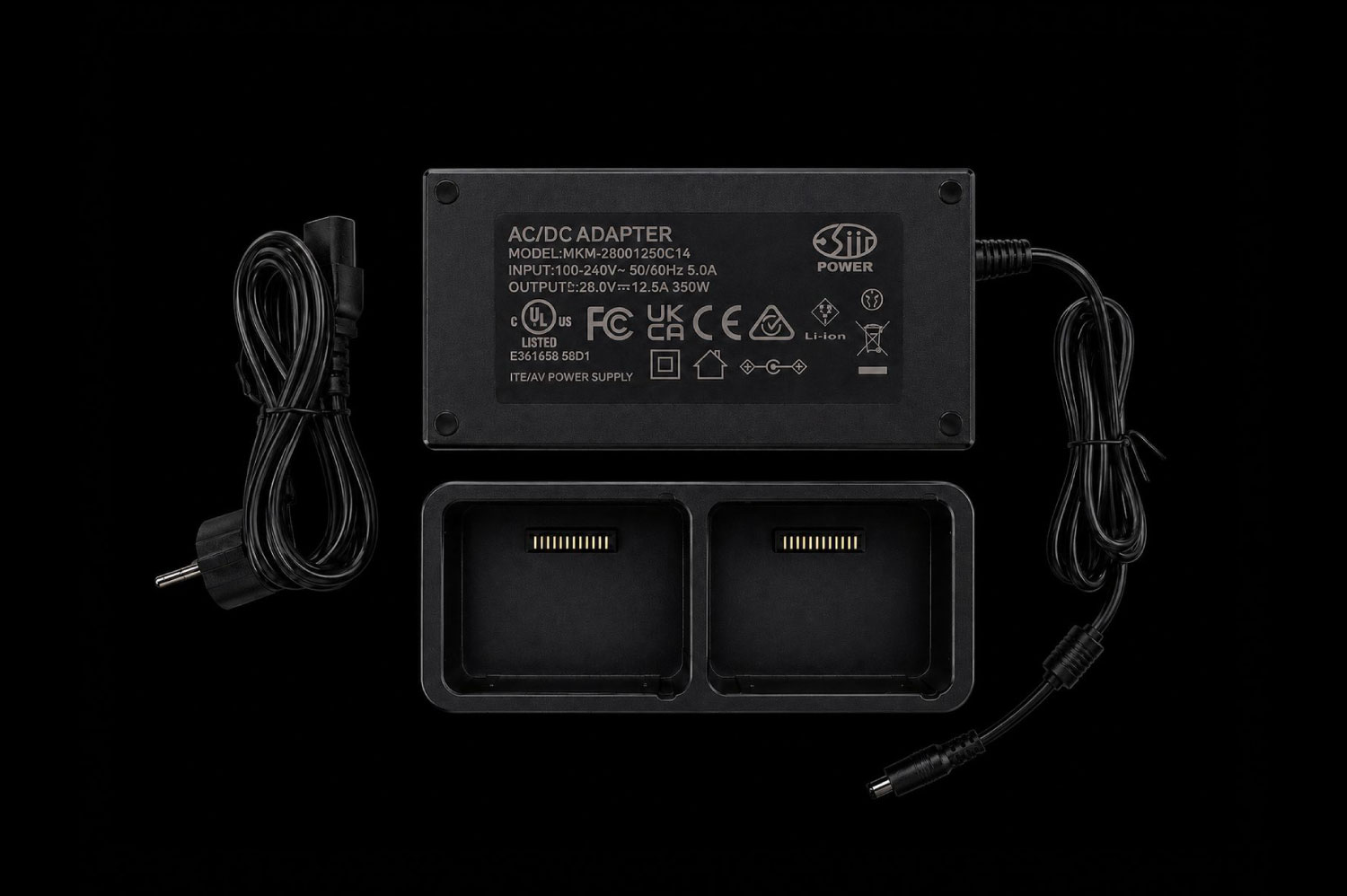

Charging Dock for Czech Sokil SPS100/SHH100 Anti-Drone Rifles

The charging dock for Czech Sokil SPS100/SHH100 rifles is designed to recharge the compatible battery pack. The dock provides a secure connection for charging and features an LED indicator to display the charging status.

  • Power input from charger: 28.5 V, up to 15 A (nominal input for the dock).

  • Battery charging via dock: CC mode, target current 6 A.

  • Indication: LED “Charging Status” on the dock body.

Electrical Parameters

  • Charger input to dock: 28.5 V, up to 15 A.

  • Battery charging current via dock: constant current 6 A (to be confirmed in final specification)

  • Do not exceed maximum voltage and current values for the dock input.

  • Charge the battery using a “CC first, then CV” scheme.

  • Avoid reverse polarity, short circuits, moisture, mechanical shocks, or excessive vibration.

  • Do not use defective chargers and do not leave batteries charging for more than 24 hours continuously.

Warnings

  • Keep away from heat sources and open flame.

  • Prevent short circuits.

  • Do not disassemble or deform the dock.

  • Keep out of reach of children.

  • Do not mix with other types/models of batteries or docks.

  • Observe allowed charging temperature ranges.

  • Length: 204.6 ± 0.3 mm

  • Width: 85.5 ± 0.2 mm

  • Height: ≈ 59.63 ± 0.1 mm

Warranty: 1 year (does not cover misuse or incorrect operation).
